Overview of Titanium

Titanium is a silver‐gray metal with extraordinary properties. Its strength‐to‐weight ratio and resistance to corrosion make it unique. The metal weighs only 4.51 g/cm³ which puts it in a distinct positionlighter as compared to steel but a lot stronger. Its high melting point of 1668°C guarantees structural stability even in very high temperatures.

This property makes titanium indispensable for industrial & aerospace applications. This metal is also good for medical use due to its biocompatibility. Its resistance to extreme environments further strengthens its value in the chemical processing and aerospace sectors.

See Also: Titanium vs. Tungsten

Key Titanium Grades and Their Prices

Current Cost of Titanium Per Pound (2025)

As of 2025, titanium prices vary significantly based on grade, form, and market conditions.

Titanium Price Ranges by Form:

Commercially Pure Titanium

Price Range: $6-$9 per pound

Grades 1-4 titanium offers excellent corrosion resistance and weldability, making it ideal for chemical processing equipment, heat exchangers, and architectural applications where strength requirements are moderate.

Titanium Alloys (Grade 5)

Price Range: $10-$15 per pound

Ti-6Al-4V (Grade 5) is the most widely used titanium alloy, offering superior strength and heat resistance for aerospace components, medical implants, and high-performance automotive parts.

Titanium Scrap

Price Range: $2-$4 per pound

Recycled titanium provides a cost-effective alternative for less demanding applications. Prices vary based on purity, contamination levels, and processing requirements.

Titanium Sheets

Price Range: $15-$30 per pound

Sheet titanium commands higher prices due to additional processing costs including rolling, annealing, and finishing. Pricing varies by thickness, with thinner sheets typically costing more per pound.

Titanium Rods and Bars

Price Range: $12-$25 per pound

Titanium bars and rods are priced according to diameter, with smaller diameters generally commanding higher per-pound prices due to more intensive processing requirements.

Titanium Powder

Price Range: $30-$60 per pound

Used primarily in additive manufacturing and powder metallurgy, titanium powder represents the premium end of the market due to specialized production processes and strict particle size requirements.

Main Factors that Affect Titanium Prices

A number of important factors combine to determine titanium prices:

1. Raw Material Costs

Titanium extraction demands complex processes. Manufacturers mainly use the Kroll method to process minerals such as rutile & ilmenite. These operations need special equipment and considerable energy which results in high costs. The lack of easily extractable mineral deposits further increases mining costs & complexity.

2. Supply and Demand Dynamics

The relationship between supply & demand directly affects titanium prices. When its demand increases in industrial sectors such as medical, aerospace & renewable energy, prices also increase. On the other hand prices decrease during decline in industrial operations or periods of abundant supply.

3. Technological Innovations

Modern technologies are changing how titanium is produced. Innovations such as FFC Cambridge process & 3D printing are bringing positive changes to manufacturing efficiency. These developments have ability to decrease production costs in future which will make titanium prices even more affordable.

4. Geopolitical Factors

Supply chains are periodically disrupted by political instability in leading producing countries such as China & Russia. Trade restrictions, conflicts such as the situation in Ukraine as well as sanctions create market uncertainty. These conditions can drive up prices and limit availability.

5. Global Economic Situations

The global economy directly affects titanium prices. Healthy economic growth usually increases demand & also supports higher prices. On the opposite economic downturns decrease demand and push prices down. Markets also react to inflation rates and changes in currency values.

Historical Price Trends

2000 to 2010

In the early 2000s titanium prices remained low. Due to low industrial demand, scrap titanium sold for $2 to $3 per pound. Increased use of titanium alloys in aerospace industry drove prices to $6 to $7 dollars per pound by 2006. During the 2008 financial crisis, prices fell sharply to $3 to $4 per pound.

2011 to 2020

Consistent demand from the medical sectors & aerospace industries kept prices between $4-$6 per pound from 2011‐2014. Chinese oversupply decreased prices to $3 to $4 per pound in 2015 to 2016. The development of 3D printing technology helped prices recover to $5 to $7 per pound by 2020.

2021 to Present

Growing demand from the renewable energy sector & aerospace industries pushed prices up to $7 to $9 per pound in 2021. By 2023 regional price differences rose, with prices being higher in Asian markets due to strong manufacturing demand in contrast to European & US markets.

How Industry Applications Affect Titanium Pricing

Different industrial uses affect the market prices of titanium. Here are the main sectors:

Automotive Industry

Automotive applications remain price-sensitive, with titanium usage limited to high-performance components where weight savings justify the $10-15 per pound cost. Electric vehicle development is creating new opportunities for titanium in battery enclosures and structural components.

The automotive sector’s growing focus on lightweighting and extended vehicle ranges may increase titanium demand in coming years.

Aerospace and Defense

The aerospace sector consumes approximately 50% of global titanium production, making it the primary price driver. Aircraft manufacturers require aerospace-grade titanium that meets stringent certification standards, commanding premium prices of $12-20 per pound.

Long-term supply contracts between major producers and aerospace companies can stabilize pricing but also create supply constraints for other buyers during production ramp-ups.

Energy and Marine

Offshore energy and marine applications leverage titanium’s corrosion resistance in saltwater environments, with prices ranging from $8-14 per pound. These applications prioritize long-term performance over initial cost, focusing on total lifecycle economics.

Growing offshore wind development is creating new demand for corrosion-resistant titanium components.

Medical and Dental

Medical-grade titanium requires exceptional purity and biocompatibility, with prices ranging from $15-25 per pound. The medical sector prioritizes consistency and traceability over price, creating a stable but premium market segment.

Growing applications in implants, surgical instruments, and dental prosthetics are expanding titanium demand in healthcare, with specialized alloys commanding significant price premiums.

Industrial and Chemical

Chemical processing equipment leverages titanium’s corrosion resistance, with prices typically ranging from $8-12 per pound. This sector often utilizes commercially pure grades (Grade 2) and focuses on long-term cost savings from extended equipment life.

Industrial applications tend to be less sensitive to short-term price fluctuations due to titanium’s superior lifetime value in corrosive environments.

Consumer and Sporting Goods

Consumer applications typically use lower grades or titanium alloys priced at $6-10 per pound. This sector is highly price-sensitive and often first to reduce titanium usage when prices rise.

Premium sporting goods, jewelry, and high-end consumer products represent a small but growing market segment for titanium.

Contrast with Other Metals

Aluminum

Aluminum is as light as titanium but less strong. Its price ranges from $2 to $2.50 per kilogram. This low price makes it attractive to the construction and automotive industries. Still titanium is indispensable in medical sectors and aerospace industries due to its better resistance to corrosion and strength‐to‐weight ratio.

Steel

There is a great difference in the prices of titanium & steel. The price of titanium is between $35 to $50 per kilogram whereas the price of steel is between $1 and $1.50 per kilogram. Steel performs well in automotive & construction applications. Even so it cannot compete with titanium’s lightness and corrosion resistance. These limitations make titanium a better choice for marine and aerospace applications.

Also See: Titanium vs Stainless Steel

Copper

Copper costs between $4-$10 per pound. Its perfect conductivity makes it good for electrical uses. Titanium is more expensive but performs better in extreme conditions because of its great strength & corrosion resistance. These properties support its choice over copper in intense environments.

Strategic Approaches to Titanium Purchasing

Implementing effective purchasing strategies can help organizations optimize titanium costs while ensuring supply chain reliability and material quality.

1. Volume Purchasing

Consolidating purchases to achieve higher volumes can yield discounts of 5-15% through economies of scale. Coordinating requirements across projects or departments helps reach volume thresholds for preferential pricing.

Consider establishing blanket purchase orders with scheduled releases to maintain pricing while managing inventory efficiently.

2. Long-Term Agreements

Negotiating long-term supply agreements (1-3 years) provides price stability and preferential allocation during supply constraints. These agreements often include pricing formulas tied to raw material indices rather than fixed prices.

Include flexibility clauses to accommodate volume fluctuations while maintaining relationship benefits.

3. Specification Optimization

Review material specifications to ensure they’re appropriate for the application without over-specifying. Switching from aerospace to industrial grades where appropriate can yield 20-30% cost savings.

Engage engineering teams early to identify opportunities for grade substitution without compromising performance.

4. Near-Net-Shape Purchasing

Purchasing titanium in forms closer to final dimensions reduces material waste and machining costs. For complex components, consider additive manufacturing or near-net-shape forming to minimize material usage.

Evaluate total cost including material, machining, and scrap value rather than focusing solely on per-pound price.

5. Supplier Diversification

Maintain relationships with multiple qualified suppliers to mitigate supply chain risks and enable competitive bidding. Consider geographic diversification to reduce exposure to regional disruptions or trade restrictions.

Develop relationships with both primary producers and service centers to access different market segments.

6. Scrap Recovery Programs

Implement formal programs to collect, segregate, and monetize titanium scrap generated during manufacturing. High-quality, segregated titanium scrap can retain 30-50% of original material value.

Consider closed-loop arrangements with suppliers where scrap is returned for credit against future purchases.

Future Outlook for Titanium Pricing

Understanding emerging trends and market dynamics helps buyers prepare for future titanium price movements and supply chain developments.

Additive Manufacturing Growth

The expansion of titanium additive manufacturing is creating new demand for specialized titanium powders while reducing material waste in component production. This technology enables complex geometries that were previously impossible or prohibitively expensive to produce.

As additive manufacturing scales up, it may fundamentally alter titanium supply chains and pricing structures for complex components.

Extraction Technology Advances

Research into alternative titanium extraction methods aims to reduce the energy intensity and cost of titanium production. Processes like the FFC Cambridge process and continuous metallothermic reduction show promise for more economical titanium production.

Successful commercialization of these technologies could significantly reduce baseline titanium costs in the coming decade.

Supply Chain Regionalization

Geopolitical tensions and supply chain vulnerabilities are driving efforts to develop more regionalized titanium supply chains. Government initiatives to secure strategic material supplies may reshape global titanium production and pricing dynamics.

This trend could create both challenges and opportunities for buyers as new suppliers enter the market.

To Sum Up

A number of important factors determine the price per pound of titanium. These factors include raw material costs, supply & demand relationships as well as advances in technology. It is very important for companies to understand these factors to make better purchasing decisions.

If you need any kind of CNC machined titanium parts then Richconn is your best option. You can contact us anytime.

Related Questions

The post Cost of Titanium Per Pound: Factors, Trends, and Purchasing Tips appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

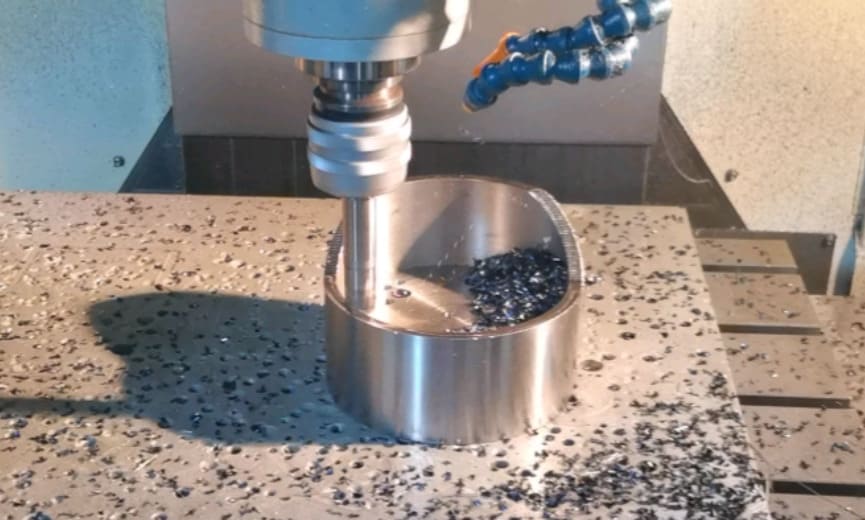

In this blog post we will see what rough machining is. We’ll also cover its purpose, the problems it solves as well as the main methods & strategies for getting the best roughing results.

Objectives & Key Characteristics of Rough CNC Machining

Rough machining aims to achieve three main objectives which are as follows:

1. Material Removal & Stock Reduction

Quick removal of large amounts of material is the main goal. Operators use high speed methods to shape the workpiece close to its final form. This step focuses on reduction of bulk, not on detailed finishing. The process assures maximum material extraction.

2. Time & Cost Efficiency

Cutting down machining time & cost is also a purpose of roughing. Roughing do so by using aggressive cutting parameters like deep cuts and high feed rates to remove material faster. This boost productivity and lower costs but it also causes more tool wear.

3. Preparation for Finish Machining

Finally roughing make the workpiece ready for finishing. During the process operators intentionally leave a set amount of material, mostly between 0.5 mm and 1 mm, on the surfaces. This allowance gives the finishing operation enough stock to reach tight tolerances and create a smooth, precise surface.

Rough CNC Machining Process

A successful rough machining process depends on the right combination of tools, cutting parameters as well as strategies. Every element helps remove material quickly and prepares the part for the finishing stage.

Tooling & Tool Selection

Selection of the right tool is the first step in roughing. This operation needs cutters with large diameters and strong, durable edges that can handle heavy forces. Solid carbide and high speed steel cutters are common choices. Many of these tools have special coatings that improve heat resistance and durability. These coatings help the tool last longer during tough cutting conditions.

Cutting Parameters

Roughing uses bold cutting parameters to shorten cycle times. High feed rates and deep cuts are standard in this process. Moreover, roughing produces a lot of heat which make a steady flow of coolant necessary to keep temperatures down & remove chips. Flood coolant systems with water soluble oil or synthetic water based coolants mostly give the best results.

Note: These values are for CNC rough self‐propelled rotary turning on hardened AISI 4150 steel with carbide tools. Parameters will change a lot with other materials, tool types or roughing operations like conventional turning, milling or drilling.

Related Blogpost: Feed Rate and Cutting Speed in CNC Machining

Toolpaths & Roughing Strategies

Roughing can use several toolpath methods. Standard options are parallel (zig‐zag) passes and contouring, where the tool traces the part’s shape. More advanced strategies such as trochoidal milling or adaptive clearing use complicated paths to keep the tool load steady. This approach allows deeper cuts and faster speeds without risking tool damage.

Machine Setup & Fixturing

A solid setup is crucial for rough machining. The workpiece must stay firmly clamped in a fixture to avoid movement and reduce vibration. The machine must also provide enough power to handle the strong forces from deep, fast cuts.

At RICHCONN, we create custom fixtures for complicated parts. These fixtures improve stability and help reduce changeover times.

Material Considerations

Materials respond to roughing in different ways. Aluminum and other soft metals are easy to machine. Harder alloys and steels create more heat and wear out tools faster. Machinability, thermal effects along with chip formation all have important roles in successful rough machining.

Rough vs Finish Machining

CNC machining is divided into roughing & finishing. These two serve distinct purposes and use different methods.

1. Goals & Priorities

Rough machining focuses on removing large amounts of material quickly to get close to the final shape. Finishing, on the other hand, targets exact dimensions, tight tolerances as well as a smooth surface.

2. Parameter Differences

RICHCONN handles both roughing and precise finishing in the same facility. This setup keeps control over tolerances and surface quality without the need to move parts elsewhere.

3. Tool Wear & Lifecycle

Roughing uses high cutting forces and produces more heat which causes tools to wear out faster. Finishing, on the other hand, uses lighter forces and less heat therefore tools last longer.

4. Cost & Resource Impacts

Roughing removes material quickly; thus it usually costs less per unit volume. In contrast, finishing takes more time and often needs special tools and this raises costs. If roughing is not done well then finishing becomes harder and more expensive which ultimately increases total production costs.

5. Comparison Table of Roughing & Finishing

Related Blogpost: CNC Roughing vs Finishing

Best Practices & Common Challenges

Managing roughing process well means tackling common issues with reliable methods. Therefore by using these best practices you can increase process efficiency and gets the workpiece ready for a high quality finish.

Optimization of Roughing Parameters

To get the best results, you must balance fast material removal with tool life and what the machine can handle. Using CAM software is a top method. It simulates toolpaths and helps find the most effective cutting approach before machining starts. This process lets you set parameters that boost both productivity and safety.

RICHCONN offers free design‐for‐machining feedback for this reason. Customers can adjust allowances or strategies before production and thus avoid extra revisions later.

Minimizing Vibrations & Errors

Vibration, also called chatter, often lowers surface quality and wears out tools faster. You can prevent this if you choose rigid workholding fixtures and keep tool overhang as short as possible. Changing spindle speeds & feed rates also helps break up the vibrations that cause chatter.

Allowances & Tolerances

Keeping a consistent machining allowance—extra material left for later passes—is important. This leftover stock gives the finishing pass enough material to create a smooth, accurate surface. It also helps fix small errors from the roughing stage.

Measuring Performance & Quality in Rough Machining

Evaluation of the roughing stage is crucial to maintain an efficient process. By tracking key performance indicators, you can judge both the quality and effectiveness of rough machining.

Material Removal Rate (MRR)

Speed is the main goal during roughing. MRR measures how quickly material is removed therefore it serves as a vital performance indicator. You can calculate MRR using this formula:

MRR = Depth of Cut × Cutting Speed × Feed Rate

When you increase MRR, production moves faster. However, higher rates also put more stress on cutting tools.

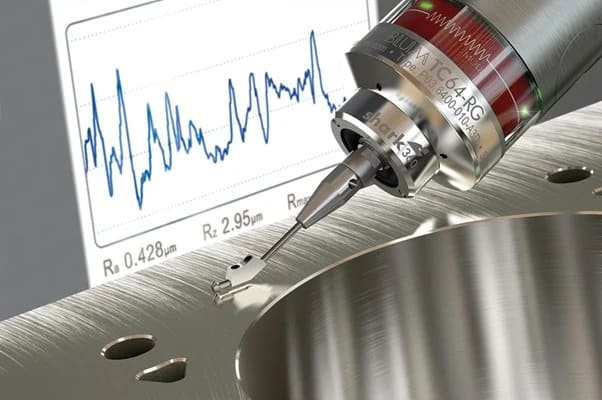

Surface Roughness / Finish Indicators

Rough machining does not focus on achieving a smooth finish but the surface condition still matters for later steps. Surface texture is measured by parameters like Ra & Rz. After rough cutting, surfaces often show roughness values of 6.3 µm Ra or more. Keeping track of these numbers helps avoid problems during finishing.

Related Blogpost: A Detailed Guide on Surface Roughness

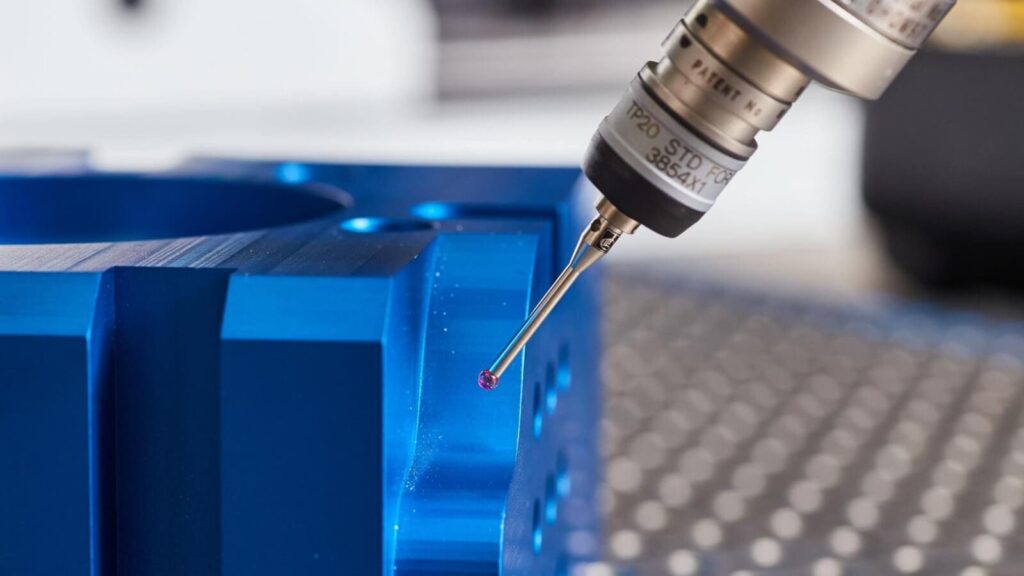

Dimensional Accuracy & Geometric Errors

Parts need to reach their basic shapes even in the roughing phase. Machinists check for significant geometric errors such as warping or deflection from cutting forces. Moreover if you maintain dimensional accuracy at this stage, finishing passes become more precise.

Tool Wear Monitoring

Running roughing operations at high feed and speed rates causes tools to wear out faster. It is important to monitor tool condition, either by visual checks or with machine sensors. Detecting wear early stops tool failure, protects the workpiece as well as prevents expensive delays later. At RICHCONN, our machines has smart sensor alerts to detect abnormal wear so that operators can replace tools before they fail.

Uses of Rough Machined Parts in Different Industries

Aerospace

The aerospace industry often starts with large forged blanks to create parts like turbine housings and structural brackets. Rough machining shapes these pieces closer to their final form. This process reduces weight and prepares the parts for later precision machining steps.

Automotive

Automotive manufacturers use rough machining to speed up the creation of powertrain and chassis parts. They often machine engine blocks from solid aluminum, as well as gearbox housings and suspension pieces. This initial shaping is vital for producing standard vehicles in high volumes and for quickly making custom prototypes.

Oil & Gas / Marine

Oil, gas and marine sectors demand components that last. Rough machining creates large, strong parts built to resist corrosion. Common examples include thick‐walled pump housings, complicated valve bodies and large industrial flanges used in pipelines & underwater systems.

Tooling & Molds / Dies Industry

In the mold and die industry, rough machining has a key role. This process quickly removes large amounts of steel or aluminum to form a mold cavity or stamping die. This step gets the tool ready for finishing passes that will set the final surface quality.

Heavy Machinery / Mining Equipment

Heavy machinery and mining equipment production rely on rough machining. Manufacturers rough machine parts like excavator arms, structural frames as well as buckets from thick plates or forged material. This operation removes excess material and gets the components ready for welding, heat treatment and final finishing.

To Sum Up

Rough CNC machining marks the first step in manufacturing by focusing on fast and efficient material removal. This stage prepares the workpiece for later precision finishing. When manufacturers understand the right methods and best practices, they can make high quality parts more efficiently. If you need rough machining services for your next project, then Richconn is your best option. You can contact us anytime for a custom quote.

Related Questions

The post Rough CNC Machining: Methods and Strategies appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What Is Cavity Milling?

Cavity milling, sometimes known as pocket milling, is a CNC process used to create hollow spaces inside a workpiece. This method uses a rotating cutting tool, like an end mill, to clear out large amounts of material within set boundaries. This action forms enclosed recesses or “pockets” in the part.

Difference Between Shallow vs Deep Cavity Milling

Tools, Tooling & Machining Parameters for Cavity Milling

Selection of right tools and machining parameters is crucial for cavity milling. These choices directly impact precision, efficiency as well as the final part’s quality.

Cavity Milling Tool Types, Tool Material & Geometries

End mills are the main tools used in cavity milling. Several types are common

• Square‐end mills: These create flat‐bottomed cavities and form sharp internal corners.
• Ball‐end mills: Use these for shaping complicated 3D contours and curved surfaces.
• Bull‐nose mills: Best for blending flat & curved features without visible transitions.
• Necked‐down end mills: These can reach deep cavities where extra length is needed.

Moreover flute geometry also affects the tool performance.

• Two‐ or three‐flute tools suit softer materials.
• Four‐flute or variable‐helix tools provide more rigidity and improve surface finish in harder materials.

Tool material selection matters as well. Carbide is the top choice for steel while high speed steel (HSS) works better for softer metals.

At Richconn, we stock multiple carbide and variable‐helix cutters. This reduces lead times and assures that the right tool is always available for each job.

Tool Holders, Adapters & Extensions

Tool holders attach the cutting tool to the machine spindle. Adapters and extensions help reach into deep pockets. High rigidity in these parts is necessary to reduce vibration, maintain dimensional accuracy as well as achieve a smooth surface.

Cutting Parameters

To get the best results, you must balance spindle speed, feed rate and depth of cut. The best parameters depend on both the workpiece material and the chosen tool.

Note: These table values provide a starting point. Actual values will change with the material and tool diameter.

At Richconn, we adjust these parameters with the help of trial cuts and in‐process probing. This assures every part meets accuracy and efficiency requirements.

Entry Strategy & Roughing Vs Finishing Passes

Cavity milling uses two main phases; roughing & finishing. In the roughing phase, most of the material is removed. Machinists use safe entry methods, such as ramping or starting from a pre‐drilled hole, to lower tool stress. After roughing, finishing passes follow. These passes use lighter cuts and a small stepover. The result is a smooth and accurate final surface.

Machining Path / CAM Strategies

Advanced toolpath strategies are available in modern CAM software. High speed adaptive roughing keeps tool engagement steady and removes material quickly. Trochoidal milling moves the tool in circular paths. This method works well for hard materials because it avoids tool overload and helps the cutter last longer.

Design Considerations for Cavity Milling

Choice of right tools is important, but a simple as well as effective design is just as critical for cavity milling success. Good design choices can reduce machining time, lower costs as well as improve the finished part’s quality.

Accessibility and Toolpath Clearance

Designers must make sure the cutting tool can reach every internal feature. The tool needs a clear path to slots, undercuts and shoulders without touching the part walls. If access is blocked, the part may not be machinable.

At Richconn, we provides free design‐for‐manufacturing reviews. These reviews help find features that tools cannot reach before machining begins.

Wall Thickness and Depth‐To‐Width Ratios

Follow wall thickness guidelines for every material to keep parts strong. For most metals, set the minimum wall thickness at 0.8 mm. For plastics, use at least 1.5 mm to prevent warping. Keep the cavity depth less than four times its width. This practice reduces tool deflection.

Corner Radii & Internal Transitions

Cutting tools have a round shape so sharp internal corners should be avoided. Designers need to add an appropriate fillet radius to every internal corner. Use of larger radii makes machining easier and more efficient. For best results, the corner radius should be just a bit bigger than the tool’s radius.

Tolerances & Finish Requirements

Tighter tolerances make machining more time consuming, complicated and expensive. Only specify strict tolerances when they are necessary for the part’s function.

Challenges in Deep Cavity Milling

Deep cavity milling pushes the machining process to its limits. This causes unique challenges that need careful control.

1. Tool Deflection, Rigidity & Overhang

If you want to reach deep pockets then you need longer tools, but long tools are less rigid. This extra length, called overhang, causes the tool to bend under cutting forces. This bending causes tapered walls and dimensional errors which can make the part unusable.

2. Chip Evacuation & Cooling

Chips build up in deep cavity features and block coolant from reaching the cutting edge. This leads to heat buildup. If chips are not cleared, they can be cut again and this damages the tool and also harms the part’s surface finish. Therefore removing chips efficiently is essential for tool life and consistent part quality.

3. Vibration, Surface Integrity & Unwanted Geometrical Errors

Extended‐length tools do not have enough rigidity so vibration or chatter often occurs. These vibrations leave wavy marks on the workpiece and reduce surface quality. Geometric errors can also appear. Vibration speeds up tool wear and can cause the tool to break. Ultimately the process becomes less stable.

Strategies & Best Practices of Pocket Milling

To get the best results in cavity milling, you need to optimize your process. The following strategies help improve accuracy, efficiency along with surface quality.

Minimizing Deflection & Rigidity Management

Keep tool overhang as short as possible. Shorter tools offer more rigidity and resist bending which leads to better accuracy. Choose solid carbide tools when you can. These tools are three times stiffer as compared to high speed steel (HSS) and show less deflection under load. Always pick the largest tool diameter that your design allows.

Enhancement of Chip Removal & Cooling

Efficient chip removal prevents chips from being cut again. Use high‐pressure coolant to push chips out of deep pockets. Through‐spindle coolant or a strong air blast also work well to keep the cutting area clear.

Reduction in Vibration & Improvement of Surface Finish

Vibration control is important to prevent chatter and poor finishes. Adjust speeds & feeds to solve vibration problems. End mills with a variable helix design can also help. These tools break up harmonic vibrations and produce a smoother surface.

Optimization of Efficiency

Modern CAM toolpaths such as adaptive or trochoidal milling keep the tool load steady. This approach increases tool life and allows faster material removal. As a result, cycle times drop significantly.

Applications of Cavity Milling

Mold‐making

Cavity milling shapes hollow forms inside mold cores and cavities with high precision. Manufacturers use these molds in injection molding to create plastic components for many use cases.

Aerospace

Aerospace manufacturers use cavity milling to make parts that are both strong and light in weight. The process cuts deep pockets into structural pieces like aircraft frames and bulkheads. This reduces the total weight of the aircraft and helps improve fuel efficiency.

Automotive

Cavity milling creates engine blocks, transmission parts and other detailed components in the automotive industry. It forms internal cooling channels within engine parts. This process also makes molds for interior trim pieces which helps maintain consistency.

Medical Implants

Medical manufacturing demands high accuracy. Cavity milling produces complicated orthopedic implants such as femoral parts for knee replacements. This process can achieve surface finishes smoother than Ra 0.8 μm. This assures the implants are biocompatible and safe for patients.

Measurement, Inspection & Quality Control

Careful inspection is necessary to guarantee flawless final parts. This step checks that all dimensions and surface finishes match the design requirements.

Methods to Check Dimension & Wall Straightness

CMMs are essential for quality control. These machines use a probe to collect precise 3D data from the part’s geometry. This assures that the cavity’s dimensions and wall straightness match the CAD model. On‐machine probing systems can verify dimensions during machining so the part does not need to be removed.

Surface Finish Measurement

Surface finish is measured with parameters like Ra & Rz. Ra shows the average roughness of the surface while Rz measures the average gap between the highest peaks and lowest valleys. Most milled surfaces have a finish between 1.6 and 3.2 µm Ra.

Detecting Defects

Thorough inspection reduces the risk of part failures in the future. A simple visual check can spot clear surface problems such as cracks or pits. To find hidden defects, inspectors use nondestructive testing. Ultrasonic testing locates internal voids. Dye penetrant testing reveals small cracks that break the surface.

At RICHCONN, every project uses CMM inspection and follows ISO‐9001 quality standards. These steps confirm that parts match the drawings and work reliably in their intended use.

To Sum Up

To produce complicated, high‐quality parts, you need to master cavity milling. Success depends on careful design, the right tools and effective strategies for handling tool deflection and vibration. Using these methods helps you solve common issues like tool deflection and poor surface finish.

Richconn delivers expert cavity milling for complicated parts. Our team uses advanced 5‐axis CNC machines to achieve high precision. We provide fast turnaround and maintain strict quality control. From prototypes to full production, you can rely on us as your manufacturing partner.

Related Questions

The post Cavity Milling: Techniques, Tools and Design Best Practices appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What is Angle Milling

Angle milling is a machining method that creates surfaces at angles other than 90° to the cutter’s axis. Machinists use it to make features like chamfers, beveled edges as well as V‐grooves. They achieve this by tilting the workpiece, changing the spindle’s position or by using angled cutters designed for the job.

Types of Angle Milling Tools / Cutters

Selection of the right tool is key for successful angle milling. There are several cutters and accessories that are designed to make angular features accurately & efficiently.

1. Single Angle Cutters

Single angle cutters have cutting edges on just one conical side. They mostly come in standard angles like 30°, 45° and 60°. Machinists depend on them to create clean chamfers, single sided bevels and simple dovetail shapes on parts.

2. Double Angle Cutters

Double angle cutters have two matching cutting faces that form a clear V shape. This design lets them cut full V‐grooves and serrations in one pass. The most common included angles are 45°, 60° or 90°.

3. Chamfer Mills, Dovetail Cutters, Tapered Cutters

Some tools are made for particular tasks.

• Chamfer mills create angled edges for deburring or for preparing weld seams.
• Dovetail cutters are essential for making strong, interlocking joints in fixtures.
• Tapered end mills are used to cut angled slots or to shape complicated, contoured surfaces in three dimensions.

4. Angle Heads / Tilted Heads & Fixtures

Instead of using special cutters, machinists can also adjust the machine setup to create an angled surface. Angle heads are spindle attachments that can tilt, and this lets standard tools perform angled machining. Similarly, fixtures like angle plates or sine bars can hold the workpiece at the needed angle.

Workpiece Materials & Cutter Materials

The cutter material must match the workpiece. High Speed Steel (HSS) works well with softer metals such as aluminum. For harder materials like stainless steel or titanium, machinists must use tougher carbide or coated tools to resist wear and handle higher temperatures.

Angle Milling Process: Step by Step

Machining of an accurate angular cut has several defined steps. It starts with design and ends with inspection. Each phase has a vital role in meeting the required accuracy and surface quality.

Planning & Design Stage

Begin the operation by creating a detailed plan. Review the design drawings to identify the needed angles, tolerances and surface finish. Select the right cutter geometry, angle as well as material, such as HSS or carbide, to match the job’s needs.

Machine & Setup Preparation

Prepare the milling machine for the task. Hold the workpiece securely using a vise, clamps or special fixtures. If the machine has a tiltable head, adjust it to the needed angle. If not, use tools like angle plates or a sine bar to set the workpiece at the correct position.

Parameter Selection

With the setup complete, choose the machining parameters. Start with lower spindle speeds and feed rates to avoid tool deflection and overheating, particularly with hard materials. Run trial cuts on scrap pieces to fine‐tune these settings and to keep the tool within safe limits.

Machining / Cutting Operation

Now, use the milling tool to cut the workpiece and create the angled surface. Keep the coolant flowing to manage heat and remove chips. For deep angles, take several lighter passes instead of a single heavy cut. This approach reduces tool wear and gives a better surface finish.

Inspection & Finishing

Inspect the finished part to check if it meets all specifications. Use angle gauges, digital protractors or a Coordinate Measuring Machine (CMM) for accurate measurement. Confirm the angle stays within the required tolerance, mostly as tight as ±0.1°. Complete the process by polishing or deburring as needed.

At RICHCONN, CMMs verify every angular feature and customers can request full inspection reports or material certificates if needed.

Advantages & Limitations of Angle Milling

Angle milling has clear benefits when making complicated parts. But at the same time, it also brings particular challenges that need careful management. Therefore understanding both sides helps you decide if this process fits your project needs.

Advantages

• Complex Geometry Creation: This method works well for building intricate features. It can easily create chamfers, V‐grooves as well as dovetails. These detailed shapes can improve both the strength and function of a part.
• Precision in Angular Features: With the right setup, angle milling can reach very tight tolerances. It can achieve angle accuracy down to ±0.1° or better. This level of precision is particularly important in aerospace & medical fields.
• Improved Accessibility: Angle heads or tilted spindles make it possible to reach areas that standard tools cannot. This advantage is useful for machining deep cavities as well as machining inside complicated molds. You do not need to reposition the workpiece.
• Reduced Setups and Operations: Many features can be finished in just one setup. This removes the need to move the workpiece multiple times. As a result, total production time drops and alignment errors between steps are less likely.
• Time and Cost Savings: Fewer setups mean shorter production cycles and lower labor costs. The high accuracy of angle milling also cuts down on material waste. This leads to more efficient and affordable manufacturing.

Limitations

• Tool Wear & Increased Stress: When the cutter meets the workpiece at an angle, friction and stress both rise. This leads to faster tool wear – particularly with hard materials like titanium.
• Machine Rigidity & Deflection Concerns: Angle milling creates cutting forces that can cause vibration. Machines and setups must be very rigid to stop tool deflection. Any lack of stability can harm both surface finish and dimensional accuracy.
• Increased Cost for Tooling & Fixtures: Specialized equipment is often needed for this process. Angle heads, rotary tables or custom fixtures can push up initial tooling costs. Complicated setups also need skilled workers which adds to expenses.

Best Practices & Tips for Successful Angle Milling

Production of accurate angled features requires careful planning. Use these tips to improve results and prevent issues.

Choose the Right Cutter / Geometry

Select a cutter with an included angle that matches your design. For tough materials like stainless steel, use carbide or coated cutters.

Rigidity in Setup & Fixturing

Make sure the workpiece and cutting tool are held firmly in place. Use strong clamps and fixtures to stop movement or vibration because these can reduce both dimensional accuracy and surface quality.

Optimize Machining Parameters

Start with low spindle speeds and feed rates when setting up. Raise these values slowly while checking for chatter or vibration. This helps you find the best cutting conditions.

Coolant and Lubrication Strategy

Use flood coolant when your machine hard alloys. This approach lowers thermal loading and helps remove chips. For softer materials, choose a fine mist or a focused air blast. These techniques control chips well and help prevent surface flaws.

Step-by-Step / Multi‐Pass Approach

Make several shallow passes instead of one deep cut when you need deep angle cuts or steep profiles. This technique puts less strain on both the cutter and the workpiece. You will also achieve a smoother finish this way.

Regular Inspection during Machining

Check the machined angle and related dimensions at intervals during the process. Do not wait until the last pass to verify accuracy. Early measurements help you find and fix any errors right away.

Tool Maintenance & Monitoring

Look at cutting tools often to spot signs of wear such as edge rounding or chipping. Keeping tools sharp and in good condition is necessary for making precise angled features.

Program and Path Planning

Before you start cutting with CNC machines, run a tool path simulation. This step helps you avoid collisions and gouges. It also assures the machining sequence is efficient.

Safety Considerations

Wear the right personal protective equipment (PPE) such as safety glasses at all times. Also set up machine guards to catch flying chips. These actions will keep the milling area safe throughout the operation.

Uses & Industry Use Cases

Angle milling has a key role in machining to create precise angular surfaces. Many industries rely on this process to manufacture complicated assemblies & components.

Aerospace

Aerospace manufacturers depend on angle milling to make aircraft parts that are both strong and lightweight. This process shapes aerodynamic surfaces on turbine blades. It also removes extra material from structural brackets which lowers weight and improves stress distribution at critical points.

Automotive

Automotive production uses angle milling for high performance engine and transmission parts. This process shapes gear tooth angles with precision. It also machines chamfers on engine blocks and creates tapered features for camshafts and other components.

Mold & Die Making

Mold and die makers use angle milling as a core process. It forms accurate draft angles needed for part ejection. This method also creates deep cavities and cuts complicated shapes like dovetails in injection molds.

Welding & structural applications

In structural work, angle milling prepares metal edges before welding. This process creates clean beveled grooves. These grooves help achieve deep weld penetration and form strong & reliable joints that improve assembly fit and strength.

To Sum Up

Angle milling has a key role in the production of precise angled features. This process lets manufacturers create complicated parts with high accuracy & efficiency. To master angle milling, you need the right tools, careful planning as well as expert knowledge.

When your project demands angle milling, Richconn’s precision machining services can deliver the accuracy your parts need. You can contact us anytime.

Related Questions

The post What Is Angle Milling: Process, Types and Best Practices appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

In this blogpost you will learn how text milling works, discover its main benefits, get design tips and see how it is used in real world situations.

What is Text Milling

Basically text milling is a process of engraving text, logos, numbers onto a part using a CNC machine. In this process, a rotating cutting tool is used that follows programmed instructions to carve the design into the surface. This method creates highly accurate and permanent markings and it is therefore suitable for part numbers, logos and branding.

Text Milling Process – Step by Step

The text milling process essentially transforms a digital design into a physical engraving and it is accomplished through a deliberate, multi step process. Each individual step depends on the previous one in order to maintain both quality and accuracy.

CAD / Design Stage

First designers typically use CAD software like CorelDRAW or AutoCAD to create the digital text designs. They then choose font styles, set exact dimensions and also specify where the text will go. After that, designers convert the text into vectors so that the design properly matches the needs of machines. What this stage does is define all important details such as character depth, height and the overall layout.

CAM / Toolpath Generation

After the design is completely ready, the CAD file then moves into CAM software. The CAM program, which plays an important part here, changes the design into G-code. This specialized code tells the CNC machine how to move the cutting tool, how fast to go and also how deep to cut.

Machine Setup

Before actual machining starts, the operator carefully prepares the CNC machine. The workpiece is clamped securely to the table so that it does not move. The operator also installs the correct engraving tool—generally a 60-degree V-bit—into the spindle. Such careful setup keeps the process precise.

Engraving / Milling Execution

With the setup fully finished, the machine then reads the G-code and begins the work. The rotating tool precisely follows the programmed path and removes material in order to engrave the text onto the surface. Automation at this stage produces uniform results.

Post processing & Finishing

After milling ends, the part may still need additional finishing steps. These steps can include cleaning off coolant or chips and also deburring  sharp edges to give a smooth finish. The result is then a professional and neat looking part.

At RICHCONN we also provide finishes like sandblasting, anodizing or color infill. These available options make the engraved text both visually appealing as well as highly accurate.

Design Considerations & Best Practices

Thoughtful planning at the design stage is very important for producing text that remains durable and clear. By following the recommendations below, designers can create designs that machines can engrave easily & efficiently.

Choice of font

For text, use clean and simple typefaces. Sans-serif fonts like Helvetica or Arial work best. Their even stroke widths are compatible with capabilities of cutting tools. Serif fonts should definitely be avoided. The reason is that their small decorative strokes are difficult to accurately reproduce with machining tools.

Spacing between letters

Leave enough space between letters so that the cutting tool can move freely. Plan at least 0.5 mm of clearance between each character. This spacing helps produce text that is both easy to read and clean.

Minimum sizes

Set the font in your CAD file to 20 points or larger so letters stay easy to read. Specify character heights between 2.5 mm and 5 mm. Aim for a text depth of about 0.3 mm. This depth does provide both good durability and visibility.

 If you need any confirmation then Richconn provides complimentary design-for-manufacturing reviews to ensure that the spacing and depth of your chosen font can be milled dependably.

Raised vs recessed text

Choose between raised and recessed lettering. Recessed text is generally less expensive and also uses less material. Raised text, on the other hand, provides better resistance to wear and is more clearly visible.

Material surface

Before placing text, always check the surface finish of the part. Avoid uneven or rough areas. These surfaces can distort the engraving and also lower the quality of the final result.

Materials Suitable for Text Milling

Text milling can work with many different materials. Each type of material has unique properties of its own. It is these differences that make them suitable for a variety of uses.

Benefits of Text Milling

1. Precision & repeatability

CNC machines engrave text with extremely high accuracy, reaching tolerances that are as close as 0.005 mm. Because every pass is computer-controlled, human error disappears and each part gets identical markings.

2. Durability

Text milling creates markings by carving them directly into the part. These markings stay permanent and strongly resist wear. Unlike labels or ink-based markings, they simply do not fade or get removed over time.

3. Aesthetic quality

The process leaves even depths and sharp edges so logos and text look professional and clean. This clarity increases both the component’s look and its apparent value.

4. Flexibility

Text milling can work with many materials which include plastics, metals and composites. Software adjustments do allow for quick design changes. The process conveniently fits both single prototypes and also large production runs.

5. Branding

Brand names or permanent logos can be added to products. This directly strengthens product identity and also makes it easier to recognize the item. Moreover it helps prevent unauthorized copying of parts.

Applications of Text Milling

Text milling provides precision and lasting results that make it useful in many different industries. It serves both basic identification needs and also advanced branding for different products.

Consumer Goods

Text milling gives consumer products a consistently high quality finish. Brands embed permanent logos on gadgets, electronics and related items. The clear markings improve the product’s value and also help maintain brand identity.

Aerospace

Aerospace teams depend on text milling when labeling vital pieces. Fuselage and engine sections, for example, receive identification numbers that survive harsh operating conditions and remain readable throughout the aircraft’s service life.

Industrial & Mechanical Parts

Industrial components often need direct engraving of information. Part numbers, serial numbers and safety warnings are all added in this way. These durable marks guide assembly and support traceability on machine parts and control panels.

Automotive

Text milling marks transmission cases, engine blocks and chassis parts in the automotive industry. These marks help with manufacturing, assembly and ongoing maintenance. The process also creates prototypes for new vehicle components quickly and with high precision.

Medical Devices

The medical-device industry depends heavily on text milling because regulations demand full traceability. Implants and surgical tools receive permanent, contamination-free marks. With those identifiers in place, each device remains traceable; this ensures regulatory compliance and patient safety.

Custom Fabrication & Prototyping

During product development, engineers label later prototype versions using text milling. Clear labels make it easy to follow design revisions and iterations. It also works well for one-off, custom components that need branded or personalized text.

Limitations, Challenges & Solutions

Text milling produces quality results but manufacturers still face several operational challenges that need specific solutions.

• Costs and production time can rise because small endmills, which are needed for engraving, operate at slower speeds and therefore extend machining cycles. Designers can reduce these issues by using recessed text instead of raised text and by choosing larger fonts. This approach both removes less material and is more cost-effective.
• Detailed text milling causes tools to wear out faster which leads to frequent tool changes and subsequent production delays. At RICHCONN we address this by using optimized cutting strategies and also high quality coated tools. These steps maintain precision and help manage costs.
• Excessive heat, particularly in thermoplastics like ABS, may cause deformation and leave a rough finish. Lowering cutting speed and integrating strong cooling keep temperatures under control and protect the workpiece from damage.
• Standard CNC machines struggle with complex fonts that have tight curves. Designers can solve this by selecting simple, bold fonts and by leaving enough space between characters. This ensures that tools can properly access and engrave the text.

Comparisons – Text Milling vs Other Engraving/Marking Methods

Every project has unique needs for speed, durability and material compatibility, so the best marking approach varies as a result. The table below gives a brief side-by-side look at the most popular options.

To Sum Up

In short, text milling is a reliable way to create markings that last and remain precise. It offers a clean appearance, strong durability and consistent traceability across many sectors.

If you need professional engraving on your parts, contact Richconn for a quote and let us turn your design into a finished product.

Related Questions

The post What Is Text Milling? Its Process, Benefits and Applications appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What is Ultra Precision Machining

Ultra precision machining (UPM) stands out as a manufacturing process that achieves exceptional accuracy. It works at scales below a micron, sometimes even reaching nanometer levels.

With this process, manufacturers can create parts with extraordinary surface finishes, usually between 1 and 50 nanometers Ra.

Methods of Ultra Precision Machining

Manufacturers use several specialized methods to reach nanometer level precision. Every technique offers unique benefits based on the material and application.

1. Mechanical Methods

Single point diamond turning (SPDT)

A single crystal diamond tool, mounted on a machine with hydrostatic slides and high stiffness, forms the core of single‐point diamond turning. This method can reach surface roughness values from 1 to 10 nanometers and give accuracies between 0.1 & 1 micron. The diamond tool’s cutting edge may have a radius of just tens of nanometers.

SPDT works particularly well for making optical parts like lenses, mirrors as well as prisms from materials such as aluminum, copper or brittle substrates like germanium.

Ultra Precision Milling, Turning, Grinding, Polishing

These processes are advanced versions of standard machining. Micro milling and micro turning use tiny cutting tools to produce detailed features with tolerances as tight as ±0.5 µm. Similarly ultra‐precision grinding and polishing use fine abrasives to achieve mirror‐like surfaces with nanometer level smoothness. This quality is essential for high performance optics and semiconductor parts.

Abrasive Based Techniques

Abrasive based techniques use tiny abrasive particles to remove material with high accuracy.

Chemical mechanical polishing (CMP) achieves angstrom‐level precision by combining chemical agents with nano sized abrasives. These abrasive particles mostly measure between 20 and 200 nanometers which allows for ultra smooth finishes below 1 nanometer Ra.

Magnetic abrasive machining uses 0.5 micrometer particles. A controlled & high speed magnetic field directs the abrasive flow and further improves surface quality.

Hybrid & Advanced Methods

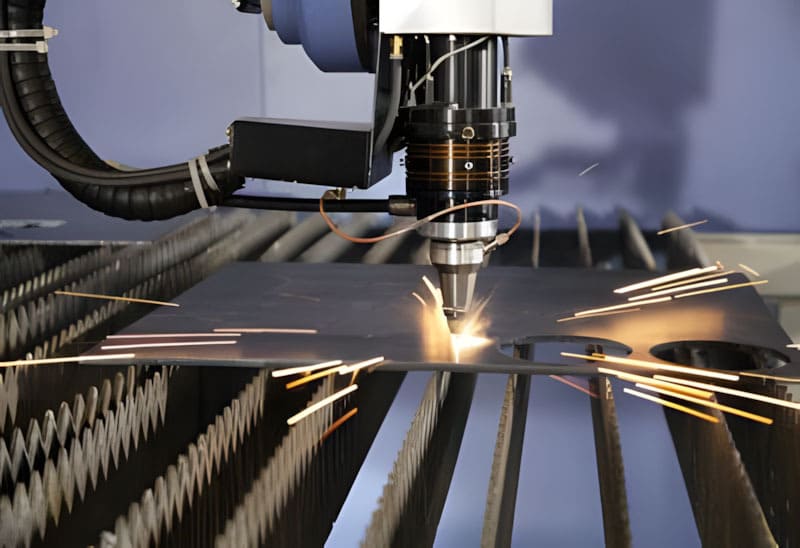

Laser‐assisted Machining

Laser‐assisted machining uses a laser to heat the cutting zone before the tool makes contact. The laser raises the temperature between 800 °C and 1200 °C which can reduce material hardness by up to 70 %. As a result cutting forces drop by 26% to 75% compared to standard machining. This method works particularly well for tough materials like ceramics, titanium alloys and hardened steels.

Electrochemical Machining

Electrochemical machining removes metal by using controlled electrolysis instead of physical cutting. The process places a cathode tool and an anode workpiece in an electrolyte with a gap of 80 to 800 µm between them. This process can achieve tolerances as close as 5 µm and surface finishes down to Ra 0.05 µm.

Because the tool never touches the workpiece, there is no tool wear and the surfaces remain burr‐free. This makes the method appropriate for hard super alloys such as Inconel and for titanium aluminides.

Ultrasonic Vibration-assisted Machining

This technique applies high frequency vibrations to the tool to improve cutting. The tool moves back and forth at ultrasonic frequencies, normally above 20 kHz, and creates micro level intermittent cuts. These vibrations lower cutting forces, reduce friction as well as help remove chips. As a result the process produces better surface finishes on hard‐to‐machine materials like hardened steel and titanium alloys.

Parts that Enable Ultra Precision

1. Machine Design

Maximum stability is the goal in ultra precision machine construction. Many machines use granite bases to control vibration and limit thermal expansion. Air‐bearing spindles and hydrostatic slideways are critical components. These features lower friction and reduce motion errors. The result is repeatable positioning accuracy below 50 nanometers which leads to extraordinary part quality.

2. Tooling

Performance in ultra precision machining depends heavily on the cutting tools. Manufacturers often use single crystal diamond or polycrystalline diamond (PCD) for these tools. These materials are extremely hard and resist wear. The sharp cutting edges they provide allow for mirror‐like surface finishes. Cutting forces stay low because of this sharpness.

3. Workpiece Materials

Choice of the right material is essential for ultra precision machining. Aluminum alloys like 6061‐T6 and OFHC copper are popular choices. Their machinability and thermal properties are excellent. These materials hold their dimensions better than steel alloys when temperatures change. To reach nanometer level finishes, materials should have low work hardening, high thermal conductivity as well as enough ductility.

4. Environment & Process Control

Machining accuracy depends directly on environmental conditions. Thermal expansion and vibration can affect results. Keeping the temperature within ±0.1°C stops dimensional drift. Humidity levels below 45% help prevent corrosion and keep materials stable. Moreover vibration isolation systems block outside disturbances and protect nanometer level precision.

5. Fixturing & Clamping

Precision fixturing keeps the workpiece within micrometer tolerances during machining. Zero‐point clamping systems achieve setup repeatability better than 3 micrometers. These systems use pneumatic actuation and mechanical locking to apply steady clamping forces. Well‐designed fixtures reduce distortion and give the workpiece reliable support while cutting.

Benefits of Ultra Precision Machining

Ultra precision machining brings measurable improvements to industries that demand high quality and innovation. These benefits affect both how products perform and how they are designed.

Tight Tolerance

Parts can reach dimensional tolerances as close as ±0.0001 inches. This accuracy lets components fit perfectly in complicated assemblies and removes the need for extra rework.

Extraordinary Surface Finish

This process can create mirror‐like surfaces, sometimes smoother than 10 nanometers. Because of this, extra polishing steps are not needed and this saves time.

Complex Geometries

Precise tooling and computer control make it possible to machine detailed 3D shapes and tiny features. These shapes cannot be achieved with standard machining methods.

Material & Energy Savings

Fewer rejected parts mean less material is wasted. Modern machines and improved workflows also use less energy which lowers costs and supports sustainable production.

Improved Performance

The resulting parts last longer, fail less often as well as work more efficiently. This boosts equipment lifespan and reliability, especially in fields like aerospace & energy.

Applications & Industry Sectors

Optics & photonics

Ultra precision machining is essential for making high quality optical parts in this sector. It produces lenses, mirrors and prisms with accuracy down to the nanometer. This level of precision is needed for cameras, telescopes and advanced laser systems to assure clear images and proper light transmission.

Semiconductor / MEMS / NEMS

Making semiconductors needs very high precision to build silicon wafers and microchips with features at the nanometer scale. Ultra precision machining creates microelectromechanical systems (MEMS) and nanoelectromechanical systems (NEMS) for electronics and car sensors. Devices such as accelerometers, gyroscopes and pressure sensors need dimensions accurate to less than a micron.

Aerospace & defense

Ultra precision machining creates turbine blades, fuel injectors, navigation parts as well as structural components with sub‐micron tolerances. Manufacturers use this process for tough materials like titanium & Inconel. These parts assure safety and reliability in aircraft, satellites, advanced weapons and military vehicles.

Medical

Precision is essential for patient safety in the medical field. Ultra precision machining makes surgical tools, custom implants and prosthetics with high accuracy. This technology supports the production of complicated, biocompatible devices for advanced diagnostics and minimally invasive procedures. As a result patient outcomes improve.

Challenges & Limitations

Ultra precision machining offers impressive results but manufacturers also encounter some challenges as well:

• High Equipment & Operation Cost: Running ultra precision machines and using specialized tools and materials requires a large investment. Diamond tooling and strict environmental controls increase ongoing costs. Small‐batch or custom jobs become expensive because of these factors.
• Long Setup & Processing Time: To reach sub‐micron accuracy, operators must calibrate machines carefully, maintain stable environments as well as change tools often. These steps slow down production cycles. Complicated or unique parts take much longer to produce than with standard machining.
• Environmental & Temperature Sensitivity: Keeping temperature and environmental conditions stable is difficult. Even small temperature changes of ±0.1°C or slight vibrations can affect sub‐micron tolerances. This can lead to scrap or the need for rework.

Still, companies that work with RICHCONN gain flexible production choices, affordable prototyping along with expert guidance. These advantages help reduce waste and speed up the development of custom precision parts.

To Sum Up

Ultra precision machining achieves tolerances at the nanometer scale, produces mirror‐like surfaces and creates complicated shapes for vital industries around the world. Meeting these requirements needs highly rigid machines, diamond tipped tools, controlled environments and skilled measurement techniques.

For reliable nanometer‐level parts you can avail the services of Richconn’s ISO certified CNC precision experts. You can contact us anytime.

Related Questions

The post Ultra Precision Machining: Techniques and Benefits appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

These parts are very important in the renewable industry to keep the machines long-lasting, highly efficient and environmentally friendly. In this blogpost, we will explain how they are made and which materials they use. We also cover their importance, typical applications and main challenges faced.

How Renewable CNC Machined Parts Are Made?

Making renewable CNC machined parts involves a careful and organized manufacturing process. During this process, digital models are turned into durable, high performance components.

Step by Step CNC Machining Workflow

1. CAD Design

By using software like Autodesk Fusion 360 or SolidWorks, engineers first build a detailed 3D model that details every geometric feature.

2. CAM Programming

Next, CAM programs—Mastercam, for instance—translate the model into G-code. This numeric file sets spindle speed, toolpaths and feed rate.

3. Machine Setup

A trained operator prepares the CNC unit. They clamp the stock and install the required carbide end mills. Afterward the machine is set to match the coordinate system of the model.

4. Execution

Guided by the G-code, the CNC machine performs multi-axis turning or milling. They remove material accurately until the part is made.

5. Inspection

At the end inspectors give the finished part a thorough check. This step confirms that every quality requirement and design specification is met before it is approved for use.

Tooling & Energy Efficiency

Sustainable machining relies heavily on the tooling that you choose. Carbide tools, with high-speed machining (HSM) toolpaths and low-friction coatings, help lower power use and cut cycle time. Moreover machines designed for energy efficiency use regenerative drives that recover energy when decelerating. This process cuts down the overall carbon emission by reusing captured energy.

Quality Control & Precision Standards

Strict quality checks make sure every part meets its specified criteria. Engineers verify dimensions with coordinate measuring machines (CMMs). These systems check tolerances down to ±0.001 inches. As a result components remain reliable and perform as required.

Material Choices for Renewable CNC Parts

Choosing the right material directly affects sustainability and performance in renewable energy parts. It also impacts everything from service life to overall cost.

Trade-offs to Consider

Several key factors must be balanced by engineers:

• Strength: Materials we choose must be strong enough to withstand operational stresses and avoid failure.

• Weight: Using lower weight improves efficiency particularly for moving assemblies like turbine blades.

• Corrosion Resistance: High corrosion resistance is necessary for parts that face harsh environments to help them last longer.

• Machinability: Some materials machine more readily which can shrink production cost and time.

Suitable Materials for Renewable CNC Machined Parts

Specific renewable applications need specific material choices.

Metals

Designers often turn to metals because of their long service life and high strength.

• Stainless Steel: Using grades such as 316L guarantees excellent corrosion resistance. This makes them a good choice for hydropower sites or offshore wind farms.
• Steel Alloys: These high-strength grades are used when top durability must be the priority.
• Aluminum: When alloys like 6061 are chosen, components remain light, machine easily and resist corrosion. They are particularly suitable for structural parts and enclosures.
• Titanium: Titanium has a high strength-to-weight ratio. However machining it is both challenging and costly.

Polymers & Plastics

In certain cases, some advanced polymers can replace metals. They cut weight while resisting chemicals.

• PEEK: This polymer handles temperatures up to 250 °C which suits harsh operating conditions.
• Nylon: Nylon is tough and has low friction. Mostly it is used in bushings and gears.

Composites

Engineers use composites when unique property combinations are needed.

Carbon & Glass Fiber:

These fibers combine very low weight with high strength. Manufacturers often use them for large parts like wind-turbine blades.

If choosing a material still feels uncertain, then feel free to contact Richconn. Our engineers will help you balance performance with cost and find the best option.

Importance of Tolerances & Precision in Renewable CNC Machined Parts

In renewable systems, precision shifts from a preference to a must-have requirement. Tight tolerances in CNC components have a direct impact on lifespan, efficiency and overall output.  Even small errors can cause problems. To illustrate this point, let us examine wind turbines.

Gearbox parts that are machined out of spec introduce vibration, accelerate wear and shorten service life. Solar panel mounting brackets also need precision. Small mistakes in their shape and size can affect alignment and lower energy output over time.

The Sustainability Benefits of CNC-machined Parts

Sustainable CNC machined components benefit both your environment and project. Those gains range from cutting waste to extending the product lifecycle.

Energy Efficiency in Machining Processes

Modern CNC equipment operates with lower power needs. Regenerative drives, for instance, recover braking energy and return it to the grid. By shortening idle time through smoother workflows, shops cut a part of energy use that would otherwise be large.

Life Cycle and Durability

Components created by CNC machining, especially when high-grade materials are used, are both long-lasting and strong. Because the process gives tight tolerances, each piece has a longer service life and will need fewer replacements. This means resources stay saved across the product’s full operating life.

Waste Reduction & Material Recycling

Because precision CNC machining delivers very accurate cuts, material waste is kept low from the start. Cutting paths become more efficient when CAM software optimizes them; and smart nesting technology arranges parts so scrap stays low. Moreover off-cuts and metal chips can be recycled which supports a circular economy.

Design for Sustainability (DfS) & Circularity

With CNC technology, manufacturers can make complex components that are purposely designed for sustainability. Engineers can shape parts in such a way so that repair, reuse and eventual recycling stay simple. Keeping materials in use instead of throwing them away pushes the circular economy forward.

Environmental Regulations & Standards

Using sustainable CNC practices helps companies meet strict environmental rules. Because waste and energy use stay low, operations match standards like ISO 14001. As a result partners and customers see the brand as environmentally responsible.

At Richconn, every workflow meets ISO 14001, REACH and RoHS standards which eases global compliance for our renewable energy clients.

Main Applications of Renewable CNC Machined Parts

Across the renewable energy industry, CNC-machined components remain essential because they boost reliability and efficiency in many applications.

Solar Energy Infrastructure

Solar projects use CNC machining to make tracking systems and mounting brackets. Moreover it produces heat sink parts and inverter enclosures – both vital for thermal solar setups.

Hydropower Plants

Hydropower plants need strong, sizable parts like turbine runners, casings and shafts. CNC machining shapes these components from stainless steel. The finished parts can withstand high water pressure and help generate power efficiently.

Wind Energy Systems

Large, accurate wind turbine parts are produced using CNC machines. Among them are gearbox components, turbine hubs and nacelle enclosures. Each part meets strict tolerances to guarantee reliable operation.

Green Transportation & Energy Storage

Sustainable transportation also uses CNC machining which delivers precise energy-storage components. Detailed cooling systems & battery housings are two examples. These components are essential for large-scale battery storage systems as well as for electric vehicles.

Technical Challenges & Their Solutions in Renewable CNC Parts Manufacturing

CNC machining performs an important part in renewable energy yet the process brings many technical challenges. To deliver efficient and reliable parts, it is very important to solve these challenges.

Scaling Up for Large Components

Maintaining tight tolerances over the wide surfaces of wind turbine hubs or other large parts is difficult. Manufacturers often split these very large pieces into manageable segments which they later join. Another option is on-site or modular machining where the component is built at the installation site.

Machining of Difficult Materials

Composites and high-strength alloys are common in renewable energy equipment. Their abrasive nature speeds up tool wear, raises costs and may cause issues such as delamination. Manufacturers therefore turn to high pressure coolant and special tool coatings to keep temperatures under control. By using these methods, they protect surface quality and extend tool life.

At RICHCONN, we combine toolpath optimization with diamond tooling and high pressure cooling to improve tool life and to produce smooth finishes on tough alloys and composites.

Cost vs Sustainability Trade-Offs

Adopting eco-friendly methods may increase upfront costs by 20–30 percent because advanced equipment and sustainable materials are required. Over time, though, that initial spending tends to generate savings. Parts that run efficiently and last longer need less maintenance and stay in service longer so overall costs go down.

Quality Control & Repeatability

Renewable-energy components must be produced with high consistency to ensure performance and safety. But it is not easy to reach that consistency. Manufacturers therefore rely on digital feedback loops and automated in-process inspection. These methods keep quality steady during large production runs.

To Sum Up

The progress of renewable energy depends, in part, on modern CNC machining. By offering outstanding durability and precision, CNC processes help solar, wind and hydropower components perform reliably. When eco-friendly practices are used, the approach becomes even more valuable to the industry.

If you need custom parts for renewable projects then RICHCONN is your best option. You can contact us anytime.

Related Questions

The post Renewable CNC Machined Parts Explained appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What is Mold Making

Mold making means building special tools called molds which are then used to shape materials into particular forms. The mold making process involves designing & creating negative cavities that serve as templates. These molds help manufacturers produce identical parts with consistent accuracy and detailed features.

Materials Used in Mold Making

1. Flexible Mold Materials

Flexible molds are needed when you want the mold to bend and use it more than once. Silicone rubbers are the most common choice here, as they can stretch up to 450%.

Addition‐cure silicones last longer and have tear strengths up to 9.8 kN/m. Condensation‐cure types, on the other hand, are simpler to use. Natural latex and polyurethane can stretch up to 830% but they do not handle heat as well.

2. Rigid Mold Materials

Metals like aluminum or steel, hard plastics & ceramics are used to make rigid molds. Steel molds can produce more than one million parts and still keep their accuracy. Aluminum molds cool faster but mostly last for about 10,000 cycles before wearing out.

3. Composite Materials

Composite molds use resin matrices combined with reinforcements such as carbon or glass fibers. This combination increases strength, extends lifespan and boosts heat resistance. Additives and fillers can make the material stiffer and can also reduce costs.

Mold Making Techniques/ Methods

Manual/ Traditional Methods

Manual methods include brush-on molds, block molds and plaster casting. These are best for art projects and small-scale manufacturing. This process involves building mold boxes, applying release agents and mixing materials by hand. Brush-on methods build up mold thickness in several layers. These techniques need only simple tools and give extraordinary control for detailed work.

Casting Molds

Silicone & resin casting is widely used in modern mold making. Two‐part silicone molds can capture complicated shapes and fine details. In this method liquid silicone is poured over a master pattern and is allowed to cure fully. Similarly resin casting creates strong molds that can be reused many times.

Injection Molding

Injection molding follows six main steps; clamping, injection, dwelling, cooling, opening and ejection. Plastic pellets are melted at controlled temperatures and then injected at high pressure. Cooling takes the most time in the cycle because plastic is a bad heat conductor.

Machined Molds/ CNC Molds

Machined molds rely on CNC (Computer Numerical Control) technology for top precision. This subtractive process shapes solid metal blocks such as aluminum or steel according to digital designs. The result is highly accurate and durable molds that meet industrial standards.

Compression Molding

Compression molding shapes material by pressing a measured amount of that material into a heated, two‐part mold. Manufacturers mostly use thermoset plastics or composites for this process. They place the material in the mold cavity and then close the mold with a force of 300 to 400 tons. This method works best for making large, mostly flat parts like automotive gaskets.

Blow Molding and Thermoforming

Blow molding and thermoforming both create hollow or thin‐walled plastic products. In blow molding, a heated plastic tube expands inside a mold and this forms items such as bottles & tanks. Thermoforming, on the other hand, heats a plastic sheet until it softens and then shapes it over a mold. This technique is especially useful for packaging.

Sand Casting

Sand casting uses refractory sand mixed with clay binders to build molds. This process follows eight main steps; preparation of sand, making the pattern, molding, melting, pouring, removal of sand, grinding and inspecting the part. This traditional method is effective for the production of large components as well as shapes with complicated internal channels.

Rapid Prototyping / 3D Printing in Mold Making

3D printing now plays a major role in mold manufacturing. This technology creates patterns, prototypes or even finished molds quickly from a digital CAD file. Production time drops from weeks to just hours which makes it ideal for short runs and fast design checks.

At RICHCONN, we often use 3D printing to make low cost prototype molds. This helps our clients review designs quickly before committing to metal tooling.

Mold Making Process: Step-by-Step

Building molds needs a careful sequence that starts with the initial idea and ends with the finished tool. Every step builds on the last and this assures precision and quality throughout the process.

1. Planning & Design

Your project’s success depends on this stage. Engineers look at the product’s shape and set draft angles, mostly of 0.5 to 3 degrees, to make part removal easier. They also account for material shrinkage which ranges between 0.3% & 2%.

2. Making a Master / Pattern

Master pattern forms the foundation for accurate mold creation. For custom art, it might be sculpted by hand. For precise parts, CNC‐machined aluminum is common. Rapid prototypes, on the other hand, mostly use 3D‐printed patterns from CAD designs.

3. Mold Preparation

After finishing the master pattern, the next step is to prepare the mold. This involves building a mold box or frame to contain the molding material. A release agent coats the surfaces to help with easy removal. For complicated shapes, parting lines are set so the mold can split into sections.

4. Material Mixing / Tool Preparation

Start by measuring the molding material with care. Mix silicone, resin or metal as the supplier instructs – mostly using ratios like 1:1 or 10:1. Use clean tools and stir the mixture well. For silicone or resin, vacuum degassing removes trapped air. This step keeps the mold solid and free from voids or weak spots.

5. Pouring / Forming Mold

Begin pouring the mixed material slowly and evenly. This helps prevent air bubbles from forming. Always follow the material’s working time which is usually between 15 and 30 minutes. If the mold has several sections, let the first layer set for at least one hour before adding more material.

6. Curing / Hardening / Cooling

Set the mold to cure at the recommended temperature and for the specified amount of time. Most systems need temperatures from 20°C to 80°C and curing can take from 15 minutes up to several hours. Some molds need heat curing in an oven. Let the mold harden fully and cool down slowly. This approach keeps details sharp and helps avoid cracks or warping.

7. Demolding

Once curing is complete, remove the mold from the prototype gently and at a steady pace. Use ejector pins or air jets to help with any areas that stick. Work carefully to avoid tearing soft molds or damaging hard ones.

8. Finishing / Post Processing

Trim away any extra material such as flash or gates with the help of precise tools. Smooth out rough edges and remove flaws by deburring or sanding. Apply coatings, paint or polish as needed for the final finish. Clean every surface thoroughly to get rid of dust & debris.

9. Testing & Quality Control

Last step is to test the mold thoroughly to make sure it meets all requirements. Inspectors check dimensions, tolerances and fit with gauges or metrology equipment. This quality check helps catch problems like warping or trapped air before starting production.

How to Choose a Technique & Material: Decision Criteria

To select the right mold making method you must weigh several factors against your project’s needs. Knowing these main criteria helps you find the most affordable solution.

Volume / Production Quantity

Number of parts you plan to produce affects both the mold’s durability and its cost. Low volume jobs such as batches up to 10,000 units work well with softer molds. Silicone or 3D printed molds offer a budget friendly option for these cases. If you need thousands or millions of parts, you must use steel molds.

Required Precision / Tolerance

The level of precision your part needs will set the standard for mold accuracy. Tight tolerances, mostly around ±0.1 mm, need molds that are made with precise methods like CNC machining. If your parts do not need such strict accuracy then you can use manual mold making techniques.

Material of the Final Product

The material you choose for your finished part affects the mold material as well. High temperature plastics or abrasive materials demand hardened steel molds. If you use softer materials, you can choose less durable molds like aluminum or non-metallic molds.

Budget and Cost of Tooling / Mold

Your available budget also has a major role in mold making decisions. Simple molds with a single cavity, made from aluminum, may cost only a few thousand dollars. These are a good fit for prototypes. If you need complicated molds with multiple cavities for high volume runs, cost can even rise above $100,000 depending on the complexity.

Lead Time

The timeline for your project matters a lot. Mold complexity has a big impact on lead times. You can get a simple 3D printed prototype mold in just 1 to 2 weeks. In contrast, fabricating, designing and testing a complicated production mold can take 6 to 12 weeks or even longer.

Life of Mold

How long a mold should last also affects the mold choice. For prototypes or low volume jobs under 500 cycles, aluminum or 3D printed molds are often enough. But if you need high volume output, hardened steel molds are the best choice.

Surface Finish & Aesthetics

The look of the finished part depends on the mold’s surface. A diamond polished steel mold is necessary for a high‐gloss, mirror‐like finish. If you want a textured surface for better grip or to hide small flaws, you can use sandblasting or other polishing methods.

RICHCONN gives clients many surface finish options, including coating, polishing and texturing. This lets you control both the function and appearance of every part right from the start.

Applications of Mold Making

Industrial Manufacturing

Mass production in automotive & aerospace industries relies on mold making. Automotive plants use steel molds to create more than 1 million dashboards, bumpers as well as engine parts. In aerospace, precise molds help make lightweight composite panels and interior components.

Prototyping / Product Design

Soft molds or 3D printed tools make rapid prototyping possible. Designers can quickly test new ideas and produce sample parts. Prototype molds allow for making 10 to 1,000 parts which helps with prelaunch testing, design checks and lowering risks before full production.

RICHCONN supports fast prototype and custom mold projects. We offer 3D printing and low volume casting which are ideal for design trials or short production runs.

Arts / Sculpture / Restoration / Special Effects

Artists use mold making to duplicate sculptures, restore artifacts and build realistic props for theater or film. Silicone & plaster molds can record any detail or feature accurately. Studios use these techniques to copy statues, fix damaged pieces and make masks or special‐effects items.

Jewelry / Decorative Objects

Jewelers rely on precise molds made from silicone or metal to produce rings, necklaces and detailed charms. Custom molds shape original designs and create sharp edges in ceramics, resin or precious metals. Similarly decorative mold making lets designers create unique, repeatable pieces and custom gifts.

Food‐safe Molds

Chocolates, candies and artisan baked goods need food‐safe silicone and polycarbonate molds. These materials can handle temperatures between –40 °C & 230 °C. Bakers use food-safe molds to form striking shapes for cakes or sweets, both at home and in commercial kitchens.

To Sum Up

Mold making lets both industries and designers produce accurate, repeatable parts for any purpose. This includes prototyping, mass manufacturing, art and food production. Choice of the right material and method helps maintain efficiency and quality at every step. To get expert mold manufacturing and CNC services, RICHCONN is your best option. You can contact us anytime.

Related Questions

The post What Is Mold Making: Materials, Techniques and Process appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What Is End Milling?

In end milling, CNC machines use rotating cylindrical cutters called end mills. Cutting edges are present on the tool’s sides as well as its tip so that material can be removed both laterally and axially. Surface finishes of Ra 0.8 µm and tolerances down to ±0.002 mm are possible with end mills.

How It Stands Apart from Other Machining Methods

Unique cutting action and tool geometry set end milling apart from other machining processes.

• Face mills remove metal mostly with their sides whereas end mills use both sides and ends to cut in many directions.
• Drill bits move straight down axially to create holes; end mills, by contrast, machine pockets, slots and complex 3D shapes.
• Conventional milling forms chips that go from thick to thin. In comparison, end milling can use climb milling which lowers cutting forces and gives smoother surfaces.

End Milling Process

An organized workflow drives end milling, turning digital ideas into precise machined parts.

1. Part Design & CAM Programming

Engineers first open CAD software and create 3D models with precise dimensions. Once complete, the file moves to CAM software which calculates toolpaths. During this stage, programmers rely on the formula: feed rate = spindle speed × chip load × flute count.

The resulting toolpaths define pockets, profiles and contours. The system then simulates and checks these paths before converting them into G-code for the CNC machine.

At Richconn, our team assists clients through expert machine setup and tailored CAM programming so production flows smoothly from the initial design.

2. Machine Setup

Machine setup begins with the operator placing the chosen end mill in a balanced holder and clamping the workpiece with a vise. Using either a touch probe or manual edge finding, the operator zeros the machine axes to set the coordinate origin. Next they adjust spindle speed (usually 8,000 to 20,000 rpm) and coolant flow feed rate based on the tool and material.

3. Execution of Milling

With the G-code loaded, the machine starts the cycle and spins the end mill up to 8,000 to 20,000 rpm. The cutter then traces the programmed paths and removes material in layers. Real-time control loops adjust speed and feed to keep tolerances tight and vibration sensors ensure that the resulting surface finish meets Ra 0.8 microns.

4. Finishing Touches & Final Inspection

Once milling ends, the part goes to inspection where a CMM checks dimensions within 0.01 mm. Technicians deburr any remaining edges during finishing, then use profilometers to confirm the required Ra value. These quality checks ensure the part is perfect for moving forward.

Technical Specifications to Consider

For reliable performance in end milling, machinists must control many key variables.

• When the tool extension goes beyond three times the tool diameter, tool deflection can occur, so pay special attention to it.
• Pay special attention to the clamping of parts with thin walls as they tend to shake and vibrate more which can harm the surface finish.
• Proper coolant flow is necessary to manage heat; at least 4 liters per minute per kilowatt is needed.
• Speed, feed and depth must balance material removal rate with tool life. This balance helps keep tolerances within ±0.05 mm.

Main Types of End Mills

End mills are produced in different shapes suited to specific machining tasks and materials. By understanding each design’s unique strengths, machinists can match the tool to the job.

Ball nose end mills

Ball nose end mills have tips shaped like a hemisphere. This design helps create smooth 3D contouring and finishing of complex surfaces the rounded end cuts material from any direction and spreads forces along the curved profile. Machinists use ball noses for mold finishing, 3D contours and other complex shapes. Because their spherical tip allows gradual depth changes, the resulting surface quality is very good.

Square (flat) end mills

A square end mill has a flat bottom and sharp corners at 90 degrees. That geometry fits clean shoulders, flat faces and accurately squared edges alike. Slotting, face milling and side milling often use this versatile cutter. A 35-degree helix angle is typically chosen to speed chip evacuation.

Roughing end mills

Roughing end mills have teeth with a wavy or scalloped shape that breaks chips into smaller pieces This rough design removes large amounts of stock quickly. Many refer to them as “hog mills” because of their aggressive action. They have a coarse design and fewer flutes. The serrated teeth reduce cutting pressure and allow for higher feed rates.

Finishing end mills

To achieve excellent surface finishes, finishing end mills rely on sharp cutting edges and many flutes. They run at lower feed rates yet still maintain smooth results and tight tolerances. After roughing operations have cleared most of the stock, machinists switch to these tools for the final passes.

Also See: CNC Roughing vs Finishing

Dovetail mills

Machinists choose dovetail mills for precise angular cuts that form machine ways and dovetail slots. Standard versions give 45° or 60° included angles while special options offer up to 17 different angles. The cutters create interlocking joints for fixtures, jigs and machine-tool tables. Because of the angled profile, the resulting connections resist pull-out forces and stay strong.

Corner rounding end mills

Corner rounding end mills create smooth, rounded edges and remove sharp corners from parts.  These tools, also called radius cutters, usually have four flutes and provide radii from 1/32″ to 3/4″. Using them eliminates later filing or belt sanding. Tight spaces and deep pockets are easier to mill with these cutters.

V-bit end mills

V-bit end mills have a conical tip and work well for carving, engraving and chamfering. They come in common included angles such as 60° and 90° and allow the formation of accurate V-shaped grooves. These cutters are widely used in sign-making and whenever precise decorative features or chamfers must be added to part edges.

Materials and Tool Matching

Matching the cutter with the workpiece material is key for consistent end milling results:

• Aluminum: Aluminum need HSS or carbide end mills with 2 to 3 flutes. Coatings like TiAlN or DLC on these mills help stop chips from sticking and further boost performance.
• Plastics: To mill plastics, select well-sharpened, smooth helical cutters of carbide or HSS. Moreover use fewer flutes to manage heat levels and protect against melting.
• Composites: Use diamond-coated carbide cutters for composites.
• Steel: For end milling steel, opt for carbide or cobalt cutters having at least 4 flutes. TiAlN or AlTiN layers on these tools increase their heat resistance and guard the edge.

Advantages of End Mill

Superior Surface Finish

Special flute shapes, combined with modern coatings allow finishing tools to achieve Ra values between 0.8 µm and 0.4 µm on parts. And because burrs are reduced and edges stay sharp, most parts need little or no secondary polishing.

Versatility

With a single setup, an end mill can rough, semi-finish & finish contours, slots, pockets, profiles and complex 3D features. Accuracy down to ±0.05 mm is regularly attained on many materials.

Flexibility and Adaptability

Changing from steel to aluminum or shifting from prototype runs to full production usually involves nothing more than adjusting programmed settings. Adaptive software even lets only one cutter manage deep cuts, slotting, pocketing and final surfacing all without removal from the machine.

Efficiency and Speed

End mills remove material quickly and keep cycle times short. When operators pair carbide tooling with CAM-optimized toolpaths and higher feeds, output often increases 30 to 40 percent as compared to other common methods while precision remains intact.

High Tolerances and Precision

With modern carbide build, today’s end mills hold key features within ±0.01 mm. AlTiN coatings cut edge wear, letting dimensions stay within spec during long runs. Using the cutters with stiff holders gives jig-bore accuracy that repeats across the whole production line.

Complex 3D Machining

Tapered and Ball-nose end mills trace free form curves to shape dies and molds. They reach scallop heights below 0.02 mm. Moreover multi-axis toolpaths allow one cutter to create complex surfaces and deep cavities without manual finishing.

Industrial Applications

Aerospace

In aerospace plants, end mills shape wing ribs, turbine disks and engine brackets. These parts, cut from hard superalloys like titanium and Inconel, need very tight tolerances which end milling achieve.

Medical Devices

Medical manufacturers use end milling to make surgical tools, implants and diagnostic equipment. The process machines biocompatible metals such as stainless steel and titanium with high accuracy. As a result smooth finishes and complex shapes result for custom implants and orthopedic screws.

Automotive Parts

Automotive factories use end mills for creating  transmission cases, engine blocks and cylinder heads. Moreover end mills process motor parts, battery trays and drivetrain pieces on electric vehicle lines.

General-purpose job shops

In machine shop applications, end mills create housings, brackets and numerous custom parts. Tool-and-die shops use them for production tooling and precision molds. Moreover electronics firms mill PCB details, aluminum enclosures and cooling parts with an end mill.

Prototyping and Custom builds

For rapid prototypes and custom work, end milling is very essential. Engineers can machine and test a new design in a single day. End mills also work well for making unique jigs, fixtures and single-run components.

Challenges and Considerations

Although end milling provides many benefits, several day-to-day issues still need close watching:

• Tool wear and breakage: Carbide end mills cost three to five times more than HSS options. And when they machine materials above 45 HRC they wear quickly. This early failure can push production tooling costs sharply upward.
• Setup complexity:  Programming toolpaths, designing fixtures and choosing parameters all call for experienced operators which together with expensive tooling can drive up overall end milling cost.
• Chatter & vibration: A lack of rigidity often creates chatter, causing dimensional errors and poor surfaces. Vibration from the machine also reduce tool life by up to 50%.

At RICHCONN, our engineers help clients address these problems. We provide process advice and setup optimization which usually shortens development time by 30 to 40%.

Tips for Selecting the Right End Mill

Choosing the right end mill means looking at several key factors that improve performance and increase tool life:

• Start with your material: Begin with the workpiece material and pair the cutter accordingly. Soft alloys like aluminum work best with 2- or 3-flute end mills for better chip removal. On the other hand hardened steels work well with carbide tools having four or more flutes.
• Match geometry to the feature: Match the tool profile with the feature. Square end mills suit flat pockets and walls. When you want 3-D contours or intricate curves, choose a ball-nose end mill instead.
• Optimize tool geometry: For best rigidity, limit the length-to-diameter ratio to 4:1 or less and keep the cutter diameter within 75 % of the spindle taper capacity. Using corner-radius end mills also helps cut down on chipping.

If you are unsure about the best cutter or method for your next job, RICHCONN’s experienced team can suggest the right end mill, material and surface finish. Our advice comes from decades of custom manufacturing expertise.

To Sum Up

From delicate prototypes to tough aerospace parts, manufacturers rely on end milling for speed, accuracy and design freedom. High quality, reliable results follow when teams understand both proper tool choice and each process step.

If you need any kind of CNC milling services then Richconn is your best option. You can contact us anytime.

Related Questions

The post What Is End Milling? Types, Process and Applications appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.
