Overview of Titanium

Titanium is a silver‐gray metal with extraordinary properties. Its strength‐to‐weight ratio and resistance to corrosion make it unique. The metal weighs only 4.51 g/cm³ which puts it in a distinct positionlighter as compared to steel but a lot stronger. Its high melting point of 1668°C guarantees structural stability even in very high temperatures.

This property makes titanium indispensable for industrial & aerospace applications. This metal is also good for medical use due to its biocompatibility. Its resistance to extreme environments further strengthens its value in the chemical processing and aerospace sectors.

See Also: Titanium vs. Tungsten

Key Titanium Grades and Their Prices

Current Cost of Titanium Per Pound (2025)

As of 2025, titanium prices vary significantly based on grade, form, and market conditions.

Titanium Price Ranges by Form:

Commercially Pure Titanium

Price Range: $6-$9 per pound

Grades 1-4 titanium offers excellent corrosion resistance and weldability, making it ideal for chemical processing equipment, heat exchangers, and architectural applications where strength requirements are moderate.

Titanium Alloys (Grade 5)

Price Range: $10-$15 per pound

Ti-6Al-4V (Grade 5) is the most widely used titanium alloy, offering superior strength and heat resistance for aerospace components, medical implants, and high-performance automotive parts.

Titanium Scrap

Price Range: $2-$4 per pound

Recycled titanium provides a cost-effective alternative for less demanding applications. Prices vary based on purity, contamination levels, and processing requirements.

Titanium Sheets

Price Range: $15-$30 per pound

Sheet titanium commands higher prices due to additional processing costs including rolling, annealing, and finishing. Pricing varies by thickness, with thinner sheets typically costing more per pound.

Titanium Rods and Bars

Price Range: $12-$25 per pound

Titanium bars and rods are priced according to diameter, with smaller diameters generally commanding higher per-pound prices due to more intensive processing requirements.

Titanium Powder

Price Range: $30-$60 per pound

Used primarily in additive manufacturing and powder metallurgy, titanium powder represents the premium end of the market due to specialized production processes and strict particle size requirements.

Main Factors that Affect Titanium Prices

A number of important factors combine to determine titanium prices:

1. Raw Material Costs

Titanium extraction demands complex processes. Manufacturers mainly use the Kroll method to process minerals such as rutile & ilmenite. These operations need special equipment and considerable energy which results in high costs. The lack of easily extractable mineral deposits further increases mining costs & complexity.

2. Supply and Demand Dynamics

The relationship between supply & demand directly affects titanium prices. When its demand increases in industrial sectors such as medical, aerospace & renewable energy, prices also increase. On the other hand prices decrease during decline in industrial operations or periods of abundant supply.

3. Technological Innovations

Modern technologies are changing how titanium is produced. Innovations such as FFC Cambridge process & 3D printing are bringing positive changes to manufacturing efficiency. These developments have ability to decrease production costs in future which will make titanium prices even more affordable.

4. Geopolitical Factors

Supply chains are periodically disrupted by political instability in leading producing countries such as China & Russia. Trade restrictions, conflicts such as the situation in Ukraine as well as sanctions create market uncertainty. These conditions can drive up prices and limit availability.

5. Global Economic Situations

The global economy directly affects titanium prices. Healthy economic growth usually increases demand & also supports higher prices. On the opposite economic downturns decrease demand and push prices down. Markets also react to inflation rates and changes in currency values.

Historical Price Trends

2000 to 2010

In the early 2000s titanium prices remained low. Due to low industrial demand, scrap titanium sold for $2 to $3 per pound. Increased use of titanium alloys in aerospace industry drove prices to $6 to $7 dollars per pound by 2006. During the 2008 financial crisis, prices fell sharply to $3 to $4 per pound.

2011 to 2020

Consistent demand from the medical sectors & aerospace industries kept prices between $4-$6 per pound from 2011‐2014. Chinese oversupply decreased prices to $3 to $4 per pound in 2015 to 2016. The development of 3D printing technology helped prices recover to $5 to $7 per pound by 2020.

2021 to Present

Growing demand from the renewable energy sector & aerospace industries pushed prices up to $7 to $9 per pound in 2021. By 2023 regional price differences rose, with prices being higher in Asian markets due to strong manufacturing demand in contrast to European & US markets.

How Industry Applications Affect Titanium Pricing

Different industrial uses affect the market prices of titanium. Here are the main sectors:

Automotive Industry

Automotive applications remain price-sensitive, with titanium usage limited to high-performance components where weight savings justify the $10-15 per pound cost. Electric vehicle development is creating new opportunities for titanium in battery enclosures and structural components.

The automotive sector’s growing focus on lightweighting and extended vehicle ranges may increase titanium demand in coming years.

Aerospace and Defense

The aerospace sector consumes approximately 50% of global titanium production, making it the primary price driver. Aircraft manufacturers require aerospace-grade titanium that meets stringent certification standards, commanding premium prices of $12-20 per pound.

Long-term supply contracts between major producers and aerospace companies can stabilize pricing but also create supply constraints for other buyers during production ramp-ups.

Energy and Marine

Offshore energy and marine applications leverage titanium’s corrosion resistance in saltwater environments, with prices ranging from $8-14 per pound. These applications prioritize long-term performance over initial cost, focusing on total lifecycle economics.

Growing offshore wind development is creating new demand for corrosion-resistant titanium components.

Medical and Dental

Medical-grade titanium requires exceptional purity and biocompatibility, with prices ranging from $15-25 per pound. The medical sector prioritizes consistency and traceability over price, creating a stable but premium market segment.

Growing applications in implants, surgical instruments, and dental prosthetics are expanding titanium demand in healthcare, with specialized alloys commanding significant price premiums.

Industrial and Chemical

Chemical processing equipment leverages titanium’s corrosion resistance, with prices typically ranging from $8-12 per pound. This sector often utilizes commercially pure grades (Grade 2) and focuses on long-term cost savings from extended equipment life.

Industrial applications tend to be less sensitive to short-term price fluctuations due to titanium’s superior lifetime value in corrosive environments.

Consumer and Sporting Goods

Consumer applications typically use lower grades or titanium alloys priced at $6-10 per pound. This sector is highly price-sensitive and often first to reduce titanium usage when prices rise.

Premium sporting goods, jewelry, and high-end consumer products represent a small but growing market segment for titanium.

Contrast with Other Metals

Aluminum

Aluminum is as light as titanium but less strong. Its price ranges from $2 to $2.50 per kilogram. This low price makes it attractive to the construction and automotive industries. Still titanium is indispensable in medical sectors and aerospace industries due to its better resistance to corrosion and strength‐to‐weight ratio.

Steel

There is a great difference in the prices of titanium & steel. The price of titanium is between $35 to $50 per kilogram whereas the price of steel is between $1 and $1.50 per kilogram. Steel performs well in automotive & construction applications. Even so it cannot compete with titanium’s lightness and corrosion resistance. These limitations make titanium a better choice for marine and aerospace applications.

Also See: Titanium vs Stainless Steel

Copper

Copper costs between $4-$10 per pound. Its perfect conductivity makes it good for electrical uses. Titanium is more expensive but performs better in extreme conditions because of its great strength & corrosion resistance. These properties support its choice over copper in intense environments.

Strategic Approaches to Titanium Purchasing

Implementing effective purchasing strategies can help organizations optimize titanium costs while ensuring supply chain reliability and material quality.

1. Volume Purchasing

Consolidating purchases to achieve higher volumes can yield discounts of 5-15% through economies of scale. Coordinating requirements across projects or departments helps reach volume thresholds for preferential pricing.

Consider establishing blanket purchase orders with scheduled releases to maintain pricing while managing inventory efficiently.

2. Long-Term Agreements

Negotiating long-term supply agreements (1-3 years) provides price stability and preferential allocation during supply constraints. These agreements often include pricing formulas tied to raw material indices rather than fixed prices.

Include flexibility clauses to accommodate volume fluctuations while maintaining relationship benefits.

3. Specification Optimization

Review material specifications to ensure they’re appropriate for the application without over-specifying. Switching from aerospace to industrial grades where appropriate can yield 20-30% cost savings.

Engage engineering teams early to identify opportunities for grade substitution without compromising performance.

4. Near-Net-Shape Purchasing

Purchasing titanium in forms closer to final dimensions reduces material waste and machining costs. For complex components, consider additive manufacturing or near-net-shape forming to minimize material usage.

Evaluate total cost including material, machining, and scrap value rather than focusing solely on per-pound price.

5. Supplier Diversification

Maintain relationships with multiple qualified suppliers to mitigate supply chain risks and enable competitive bidding. Consider geographic diversification to reduce exposure to regional disruptions or trade restrictions.

Develop relationships with both primary producers and service centers to access different market segments.

6. Scrap Recovery Programs

Implement formal programs to collect, segregate, and monetize titanium scrap generated during manufacturing. High-quality, segregated titanium scrap can retain 30-50% of original material value.

Consider closed-loop arrangements with suppliers where scrap is returned for credit against future purchases.

Future Outlook for Titanium Pricing

Understanding emerging trends and market dynamics helps buyers prepare for future titanium price movements and supply chain developments.

Additive Manufacturing Growth

The expansion of titanium additive manufacturing is creating new demand for specialized titanium powders while reducing material waste in component production. This technology enables complex geometries that were previously impossible or prohibitively expensive to produce.

As additive manufacturing scales up, it may fundamentally alter titanium supply chains and pricing structures for complex components.

Extraction Technology Advances

Research into alternative titanium extraction methods aims to reduce the energy intensity and cost of titanium production. Processes like the FFC Cambridge process and continuous metallothermic reduction show promise for more economical titanium production.

Successful commercialization of these technologies could significantly reduce baseline titanium costs in the coming decade.

Supply Chain Regionalization

Geopolitical tensions and supply chain vulnerabilities are driving efforts to develop more regionalized titanium supply chains. Government initiatives to secure strategic material supplies may reshape global titanium production and pricing dynamics.

This trend could create both challenges and opportunities for buyers as new suppliers enter the market.

To Sum Up

A number of important factors determine the price per pound of titanium. These factors include raw material costs, supply & demand relationships as well as advances in technology. It is very important for companies to understand these factors to make better purchasing decisions.

If you need any kind of CNC machined titanium parts then Richconn is your best option. You can contact us anytime.

Related Questions

The post Cost of Titanium Per Pound: Factors, Trends, and Purchasing Tips appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What Is Brass 260

Brass 260—often called Cartridge Brass—is known for its versatility in forming operations. Its composition is about 70 % copper & 30 % zinc. Thanks to that mix, the material has great formability and ductility; therefore shaping and bending it is easy.

What Is Brass 360

Containing 61.5 % copper, 35.5 % zinc and 3 % lead, Brass 360 belongs to the free machining family. Because of this mix, this alloy achieves a standard machinability score of 100. It is the top choice for precise machining jobs worldwide.

Top 10 Differences between Brass 260 and 360

After knowing the basics we will now look at the main differences. This will simplify your alloy choice.

1. Chemical Composition

2. Machinability

Brass 360 leads the scale with a machinability rating of 100. This makes it best for screw machines and parts that need tight tolerances. Brass 260, by comparison, has a rating around 30. Therefore bending or forming is is more suitable for it than heavy cutting.

3. Strength and Mechanical Properties

360 alloy usually reaches about 400 MPa in tensile strength because it has more zinc. Its Rockwell B hardness normally sits between 55 & 80. However the alloy’s strength goes down at very high temperatures.

Brass 260, on the other hand, hits about 345 MPa so it lags behind Brass 360 in tensile strength. Yet it performs better in ductility and elongation. On the Rockwell B scale, values of 40–70 are common. This means the alloy stays soft and is very easy to shape.

4. Workability and Formability

Sharp bends can make Brass 360 crack because its formability is limited; machining therefore is a better option for it. Brass 260 is at the other end of the range; it can easily handle tight bends and deep draws without cracking. This makes it a natural fit for drawing, stamping as well as for shaping complicated parts.

5. Environmental and Health Considerations

Lead in Brass 360 raises both health and environmental worries. Since lead can leach out, rules restrict its use in drinking water or food contact parts.

In contrast, Brass 260 is nearly lead free therefore it provides a safer, greener option for many applications, including those that touch people. The alloy’s makeup meets today’s health and environmental rules. Thus manufacturers prefer it for plumbing parts and consumer items.

Richconn often advises clients in regulated fields to pick Brass 260; because RoHS compliance and safe contact standards count just as much as performance.

6. Corrosion Resistance

The alloy holds up well against corrosion, in particular when operating conditions are fairly mild. Even so the higher zinc content makes it more prone to dezincification.

On the other hand, Brass 260 has more copper therefore it resists corrosion better than Brass 360. This material stands up to weathering and seldom experiences dezincification.

7. Residual Stress and Cracking (Season Cracking)

Because it contains less copper, Brass 360 is more likely to suffer stress corrosion cracking under ammonia and residual stress. Moreover machined components that remain highly stressed face an even higher risk of season cracking.

In contrast, Brass 260 resists such cracking in most service conditions because of higher copper percentage. Engineers therefore choose it for formed parts that will face outdoor exposure.

8. Color and Aesthetic Tone

Brass 360 shows a warm golden tone with a slight pink tint. This gives parts a shiny, rich look; therefore designers often choose it for visible or decorative pieces.

Brass 260, on the other hand, shows a bright yellow‐gold shade that looks a lot like real gold. That lively color pairs well with jewelry, cartridge cases as well as many hardware finishes.

9. Cost Comparison

Greater zinc content usually makes Brass 360 more expensive per pound at the purchasing stage. But fast machining often offsets that extra cost by cutting cycle times and reducing tool wear. In high volume runs, the overall price of finished parts can drop as a result.

In contrast, Brass 260 seems cheaper at first, yet limited machinability drives up processing costs. Longer cycle times and heavier tool wear often erode its material cost advantage. If a lot of cutting is required, the total project budget can rise noticeably.

For that reason choosing the right alloy and strategy matters; at RICHCONN our engineers weigh machining time, material price and finishing to keep expenses low.

10. Typical Applications

High machinability makes Brass 360 well suited for large scale production of precise components. Manufacturers mostly choose it for fittings, nozzles, valves and various plumbing or electrical hardware. Pinions, gears as well as similar mechanical parts also benefit from the alloy’s easy machining.

When parts must be bent or deep drawn, Brass 260’s extraordinary formability proves very useful. As a result the alloy is used in decorative hardware, ammunition casings and musical instruments such as trombones and trumpets. Plus its corrosion resistance helps to shape tanks and radiator cores.

Brass 360 vs 260 – Which One Is Best

No single alloy surpasses the other in every situation; the right choice depends on the particular needs of your application. Projects that involve large scale, high speed machining favor Brass 360 because it offers extraordinary machinability. As a result this alloy supports the production of complicated, exact components such as valves and fittings.

In contrast, jobs that need shaping, bending or forming point directly to Brass 260. Its extraordinary formability and ductility suit ammunition casings, decorative pieces and any part that must undergo cold working.

To Sum Up

Choosing either brass 260 or brass 360 is critical to project success. For machining work, brass 360 performs extremely well. In contrast brass 260 excels when bending or forming is required. Therefore selection of the right alloy maintains optimal performance & overall efficiency.

For expert advice about which brass is better for your work or precision CNC machining services, Richconn is a best option. You can contact us anytime.

Related Questions

The post Brass 260 vs 360: Key Differences Explained appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

This blogpost explains why this color change actually occurs. You will also know about the best approaches to clean, care for, as well as preserve your brass parts.

What Is Brass and Why Doesn’t It Rust?

Brass is an alloy which combines zinc & copper – typically 30% to 40% of zinc with 60% to 70% of copper. Certain variants also add lead, tin or aluminium to improve machinability and boost mechanical integrity.

Rust never forms on brass because the alloy holds virtually no iron. Iron oxide or rust arises exclusively on metals that contain iron.

Brass, however, succumbs to different corrosion mechanisms. When air reaches the surface then oxidation produces a greenish, defensive film known as patina. Under aggressive service conditions, dezincification can also occur; zinc leaches out, and a spongy, fragile copper skeleton remains.

What actually causes that post‐machining discoloration?

Though brass itself resists corrosion, yet newly machined pieces still face various tarnishing issues. To keep parts bright you first need to grasp how each issue arises.

Dezincification

Chloride‐laden or acidic water can attack high‐zinc brass. It leaches out the zinc alone. That specific removal is termed dezincification and produces a porous, fragile matrix of copper. Visually the zone appears dull and reddish or pink, and the part loses significant strength.

Oxidation of Zinc and Copper

Water vapor, oxygen and airborne contaminants readily combine with the copper portion of brass. The resulting oxidation deposits a very thin surface film. Sulfide contact or high moisture level changes that film’s color. It can appear as a greenish patina or black copper oxide film. This coating/film only alters the looks; function usually remains intact.

Also See: How to Prevent Oxidation of Brass Parts

Residual Oils and Surface Contaminants

Discoloration frequently begins with machining residues that stay on the part. If oil, coolant agents or grease remains after washing then it oxidizes and produces dark blotches.

Dirt and dust from the shop easily embed in those sticky layers/residue. By retaining corrosive species & moisture, the contaminated film speeds up surface tarnishing.

Corrosion from Post‐Machining Steel Transfer

Finished brass may often display brown spots that mimic rust. The brass itself remains intact. The culprit is usually microscopic steel or iron particles left on the surface. Deburring brushes, steel equipment or steel wool employed while finishing commonly supply those particles. After getting trapped those particles rust and then leave behind isolated corrosion marks on the brass.

At RICHCONN we use exclusive, assigned tools to handle brass and other non‐ferrous metals. This meticulous approach greatly minimizes cross‐contamination and delivers uniformly spotless parts to our customers.

Why CNC Machining Can Speed‐Up Corrosion‐Like Processes

During CNC machining, situations arise that increase brass’s vulnerability to corrosion‐like damage.

Rinse Water and Coolant Chemistry

Rinse water & coolants sometimes deposit corrosive residues on the freshly cut brass. Chlorine and other dissolved minerals are common in tap water and are typical culprits. Once the water dries then those minerals linger on the surface. They promote tarnishing soon after machining. Rinsing with distilled or de‐ionized water largely avoids the problem.

Machining Surface Roughness and Heat Generation

When cutters remove material, a bright, highly reactive surface appears. Cutting action leaves microscopic valleys & peaks, so the overall area grows. The greater area provides additional sites where oxidation can begin. Moreover heat produced while machining also accelerates those surface reactions, and the metal tarnishes sooner.

Grease and Coolant Residues

If workpieces are not cleaned well then a film of oil or coolant remains. As time passes that film oxidizes or deteriorates chemically. The resulting products darken the brass which leaves black specks & blotches. Prompt washing is the only way to eliminate these residual fluids.

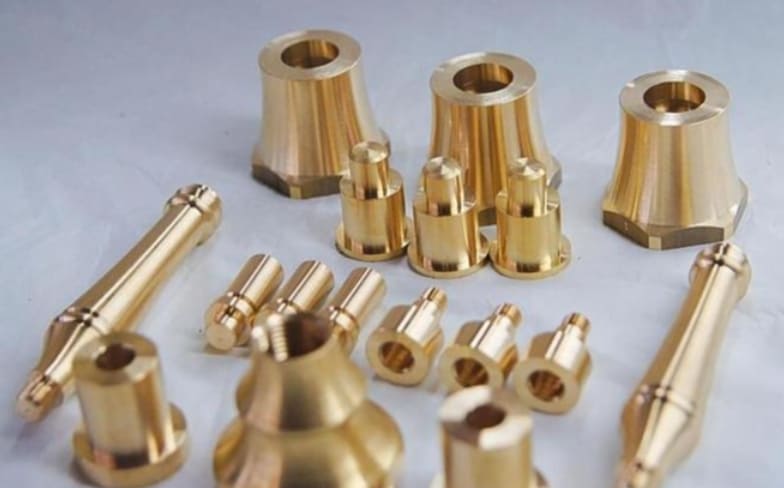

Best Approaches to Avoid Brass “Rust”

By adopting several best practices in and after production you can greatly cut the probability of discoloration while safeguarding structural quality of your part.

Alloy and Material Decision

The first step is selecting a material that suits your application. When components operate in marine or humid settings then you should opt for a brass grade with strong corrosion resistance. Admiralty brass and certain dezincification‐resistant (DZR) alloys deliver longer service life under such challenging environments.

Not certain about the brass alloy that suits best for your project? You can reach out to our team. Our experts can recommend materials that combine strength, looks as well as corrosion resistance according to your operating environment.

Coolant Selection and Procedure Regulation

Whenever feasible, pick dry machining. By doing so you can prevent coolant‐related complications. If coolant becomes critical then you should select non‐corrosive, water‐soluble blends and also check their pH frequently.

Moreover regular fluid replacement eliminates contaminant accumulation. This prevents stains that produce discoloration on brass surface.

Passivation or Surface Coatings

A defensive coating shields the newly machined surface from both moisture & air. Light layers of clear lacquer, oil or anti‐tarnish spray works well. For increased wear resistance you may plate the component with tougher metals such as chrome or nickel.

Cleaning and After‐Machining Steps

Thorough cleaning remains absolutely essential. Right after machining, immerse the parts in warm soapy water then rinse with pure deionized water to eliminate residues. Use warm air to dry the components thoroughly. During secondary cleaning or deburring, stick to brass wool or non‐ferrous brushes to avoid embedding steel contaminants.

Handling and Packaging

Skin oils promote tarnish so wear nitrile gloves whenever you handle final brass parts. During storage wrap each & every item in anti‐tarnish paper then vacuum‐seal it, optionally adding a desiccant packet to capture moisture. These precautionary steps keep your parts pristine until they are needed.

To Sum Up

Unlike steel, brass avoids true rust yet CNC machining can still discolor its surface. Identify the factors like heat, oxidation as well as machining contaminants so you can adopt simple precautionary steps.

If you need any kind of CNC machining services for brass or any other metal, then Richconn is your best option. You can contact us anytime.

Related Questions

The post Why Do Brass Parts Rust After CNC Machining? appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

Tin Metal: The Basics

Many industries depend on tin therefore let’s start with its basic features.

Chemical Properties

Physical Properties

Occurrence

Cassiterite (SnO₂) is tin’s main ore. Major reserves are in Rwanda, Bolivia and the Asian tin belt. Miners recover the mineral from alluvial deposits as well as from hydrothermal veins.

Production and Refining Methods

Processing usually starts with carbothermic smelting where carbon reduces the ore. Purity is then raised to ≥99% through liquation, boiling or electrolytic refining.

Tin Alloys and Tin Plating

Well Known Alloys

• Bronze: Roughly 12 % tin combined with copper gives greater hardness. This makes the alloy suitable for statues & tools.
• Pewter: An 85 to 95 % tin base blended with antimony, bismuth and copper; this alloy suits dishes and decorative pieces.
• Solder: Tin-lead mixes (up to 63 % tin) and lead‐free versions containing copper or silver; used to make reliable electronic joints.
• Bearing alloys: Tin with copper and antimony—Babbitt is a typical example—offer low friction and long service life.

Copper additions increase hardness and tensile strength. Antimony improves wear resistance and toughness which helps bearing grades. Bismuth also hardens the alloy; however too much causes brittleness therefore its amount is carefully controlled.

Tin Plating and Tinplate

Steel becomes tinplate either by electroplating or by hot dipping. Hot dipping lays down a thicker yet less uniform coat. On the other hand, electroplating provides a smooth & even layer.

Coating thicknesses of 0.4 to 4 µm improve solder ability, protect against corrosion and give a bright finish. Therefore tinplate is a material of choice for food cans and many electrical parts.

Manufacturing Process of Tin Parts

Manufacturers produce tin and tin‐alloy components using special fabrication techniques.

Sheet Metal Fabrication

During sheet metal fabrication, flat tin sheets are first turned into functional shapes. The process begins in CAD software where engineers model the part. Next, waterjet or laser systems trim the sheet to exact dimensions. Bending, drawing and stamping follow, which allows increasingly complicated shapes. Once the shape is set, deburring removes sharp edges and then overall quality is checked.

Die Casting of Tin Alloys

Tin alloys melt at low temperatures and flow easily therefore die casting them is relatively straightforward. Most facilities rely on hot chamber machines for this alloy family.

Operators lubricate and clamp the die first. Molten alloy is then forced into the cavity under high pressure. After cooling & solidification, the finished part is ejected. As a result detailed shapes can be produced with high precision and consistency.

Tin Lined Parts

Manufacturers mostly line other metals with tin to create safe & non reactive surfaces. For example copper cookware receives a molten tin coating that forms a non‐stick, corrosion resistant barrier. In this way it prevents acidic foods from reacting.

Post Processing and Surface Finishes

After forming, tin components usually receive extra treatments to improve appearance or durability. Chromium overplating often adds extra corrosion resistance to tinplate. Ground rolling or shot blasting can then create smooth or matte textures. Such finishes assure that each component meets both aesthetic and performance requirements.

RICHCONN provides in‐house options—from vibratory deburring to electropolishing and also RoHS compliant passivation—to assure your tin parts meet strict performance & appearance standards.

Design and Engineering Factors for Tin Processing

During design work, engineers must pay close attention to tin’s unique properties.

Thermal Behavior

Tin melts at 231.9 °C therefore it is simple to process yet unsuitable for extreme heat.

Also if temperatures drop below 13 °C, “tin pest” can develop and damage the metal. Thus outdoor designs need extra precautions.

Surface Protection

Another design focus involves protecting the surface. A thin oxide forms naturally yet rough use often calls for additional passivation or tin plating to extend life and keep food packaging safe. Applying chemical passivation—typically titanium or chromium oxide—further boosts corrosion resistance particularly in cans.

Regulatory and Material Standards

Current regulations limit the use of hazardous substances. Consequently lead free solder alloys are needed to meet EU RoHS & WEEE directives. Food grade tinplate with high purity must also carry certifications such as NSF/ANSI Standard 61 to assure safe food and water storage. Collectively these standards protect users and the environment.

Uses of Tin Metal in Manufacturing

Soldering and Electronics

To join wires and anchor chips on circuit boards, manufacturers rely on tin based solder. This alloy melts at low temperatures therefore technicians can work safely and position joints with precision. The resulting connections stay highly conductive which is an essential trait for both routine devices and cutting‐edge gadgets.

Packaging and Tinplate

Tinplate remains the material of choice for cans that hold chemicals, food as well as pharmaceuticals. By providing corrosion resistance, tight seals and a strong barrier, it prevents contamination and also lengthens shelf life.

Decorations

Home art pieces and decoration items often feature tin because of its naturally shiny finish. Craftworkers can readily form the metal into decorative plates, ornaments or custom panels. Although light in weight, tin remains durable; and this feature of tin combines practicality with a timeless appearance.

Optoelectronics

Advanced industries increasingly depend on various tin compounds. Manufacturers apply tin dioxide (SnO₂) to produce transparent conductive films that power touchscreens and detect gases. Researchers are also exploring tin based perovskites for next generation LEDs and solar cells.

Tin in Modern Technologies

In modern technologies, tin serves several essential functions. During the float glass process, molten glass rides on a tin bath which creates flat and uniform sheets. The metal also appears in lithium ion battery anodes, PVC stabilizers, superconducting alloys and pigments.

Industrial Coating

Applying a tin coating shields machinery, steel pipes and fasteners from abrasive wear. The layer repels moisture, provides corrosion resistance and enhances sliding surfaces. Because of this finish, soldering becomes simpler in future as well and overall performance and durability increase.

Pros and Cons of Tin Metal

Tin, like every other material, has pros and cons that manufacturers must consider carefully.

Pros

• Anti-Corrosion & Sealing: Tinplate blocks steel from rusting therefore it is good for food and other goods meant for long term storage.
• Durability & Printability: Strong tin containers protect products during shipping while the metal’s smooth surface allows bright, detailed graphics.
• Sustainable: Tin can be recycled easily therefore it cuts waste and helps build a circular economy.
• Forming Advantages: Tin’s softness lets makers shape it easily and the metal keeps its shape; this increases design choices.

Cons

• Higher Cost: Compared with aluminum, tin and tinplate have higher material costs. Also its manufacturing needs advanced, costly machines.
• Transport Factors: Because tin weighs more than many substitutes, companies may face higher shipping costs.
• Chemical Limitations: Contact with strong acids or alkalis can corrode tin therefore harsh chemical settings limit where it can be used.

Case Study Spotlight: Tin Can Manufacturing Workflow

Cassiterite ore is the starting point in tin can manufacturing; smelting turns this mineral ore into usable tin. Steel sheets get a thin layer of the refined metal which makes tinplate. From there, Richconn’s sheet metal team takes over. Precise cutting, stamping as well as forming shape the tinplate into lids and bodies for the cans. The parts are finally put together and welded which closes the loop from raw ore to a strong finished container.

To Sum Up

Versatile, tough and naturally rust resistant – these properties set the tin apart. Because of these traits, industries from electronics to packaging—and even decorative items—rely on it. For manufacturers that need safe & sustainable materials, tin remains one of their top choices. Feel free to contact Richconn when you need custom tin parts or high quality tin manufacturing.

Related Questions

The post What Is Tin Metal? Properties, Processing and Common Uses appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

Therefore in this blog post we will show you the techniques and practices that let your machine PTFE accurately and consistently.

What is PTFE?

PTFE means polytetrafluoroethylene, a synthetic fluoropolymer that Roy Plunkett discovered in 1938.  “Teflon” is just the trade name of PTFE. This white plastic is made up of only fluorine & carbon atoms. It shows extraordinary chemical resistance and is also thermally stable up to 327 °C.

PTFE Material’s Nature

• Thermal Stability: PTFE is a material that can bear a temperature range between -200 °C and 260 °C and melts at 327 °C.
• Mechanical Behavior: Although its tensile strength is lower as compared to a number of plastics but PTFE is very flexible & fatigue resistant – even in extreme cold.
• Chemical Stability: This polymer is almost inert to most chemicals such as aggressive acids or other solvents. Only molten alkali metals can affect it.
• Electrical Insulation: Since it’s an electrical insulator therefore PTFE shows high dielectric strength. Moreover its dielectric constant is very low i.e., around 2.0.
• Surface Qualities: PTFE shows non sticking nature because it has a very low friction coefficient. That’s because of its low surface energy of about 18 dynes/cm.

Best Machining Procedures for PTFE

PTFE’s extraordinary properties let machinists choose from a number of processes. Every process has its own advantages. Therefore to choose one over the other depends on the geometry & complexity of the final part.

CNC Milling

In CNC‐milling multi axis cutters remove material from a fixed PTFE block to form complicated shapes. Their tolerances can be very tight, usually as small as ±0.001 inches. Because PTFE is soft therefore you need to fit the machine with very sharp cutters. Their sharp edges create clean chips & do not leave burrs on the surface.

CNC Turning

For cylindrical parts such as shafts, seals and rings, CNC turning is the way to go. In turning, the PTFE blank spins and at the same time a fixed tool removes extra material from it. Keep the speed low and the depth of the cut shallow to minimize heat and to maintain dimensional accuracy as well.

Drilling and Tapping

Drilling makes holes but tapping makes threads. If you use a PTFE then a high spindle speed with less feed rate is the best for drilling. Moreover it prevents the soft polymer from deforming or even splitting. If threads are needed then machinists normally use form taps that flow the material rather than cutting it.

Grinding for an Extra Smooth Finish

Grinding is used when a very fine finish is needed for a PTFE part. Centerless machines can polish tubes, rods as well as other shapes to a uniform diameter and surface; a combination necessary for low friction applications.

Laser and Waterjet Cutting

Laser cutting is a very precise and clean way to shape PTFE. During this process a beam vaporizes the polymer – a sublimation process – leaving edges that rarely need secondary finishing.

Waterjet systems are another non traditional option which cut PTFE with a high pressure water stream and can even produce fine fibers from sintered films.

Tools and Shop Gear You’ll Need

PTFE machining success is largely dependent on the right tooling. Proper tool materials, geometries as well as lubrication stop deformation and also keep tolerances tight.

Carbide and Stellite Tools

Machinists should equip their machines with carbide or stellite tips. Basically these materials combine high hardness with strong wear resistance. Therefore they stay sharp when cutting abrasive filled PTFE. High speed steel is also a good option for short prototype runs but its edge dulls quickly.

Getting Right Geometry

Sharp Edges

To prevent cracks or tears, the cutting edge must be extremely sharp and for this purpose sometimes a tiny radius is added. A rake angle of 0‐15° promotes smooth chips and also reduces friction.

Tool Wear Checks

Even a soft polymer like PTFE can wear tools; the filled grades do so more rapidly. Polished carbide and regular cleaning minimize this wear and prolong tool life.

Cooling and Lubrication for Smarter Work

Coolant Choice

Because PTFE sheds heat poorly therefore use of coolant is a must. Moreover a continuous flow of coolant– air, fog or water soluble fluid – will be a plus because it will cool the cutting zone and will also maintain dimensions.

At RICHCONN we use mist coolant systems calibrated for soft plastics, such as PTFE, to protect edge sharpness and deliver clean surfaces.

Lubricants for Perfection

Although PTFE naturally has low friction but if you add a lubricant then it will further reduce friction. Plus this extra slip improves surface finish and extends cutter life.

Difficulties in Machining PTFE

Machining PTFE has a set of issues because of its nature. If you know every challenge beforehand then it will be a plus for you.

Maintaining Dimensions

PTFE expands a lot when heated and can deform under pressure through cold flow or “creep”. In addition parts may warp or shift in size both during and post machining.

Tool Life

Tools can dig into PTFE rather than slice through it. Moreover fillers such as carbon or glass make the material abrasive. All these speed up tool wear.

Smoother Surfaces

The soft nature of PTFE can cause it to tear or smear instead of cutting cleanly. You may see burrs and rough finishes; therefore sharp tools and careful methods are needed to get a smooth surface.

Temperature Control

Temperature changes affect PTFE’s size therefore if your working environment is not proper then final tolerances will drift out of your needs.

Holding Workpiece

PTFE shows a slippery and deformable nature which makes firm yet non marring clamping difficult. In addition if too much force is applied then it will leave marks but if you use too little force then it will allow movement.

Best Tips to Get Clean Cuts in PTFE

One should follow these guidelines to eliminate the issues above and to get accurate, high quality parts.

Pick a Right Tool

Use very sharp cutters made from carbide or high speed steel. High rake and generous clearance angles promote shearing instead of pushing which not only reduces burrs but the material distortion as well.

Coolant Application

PTFE machines well without fluids but coolant is helpful at high speeds or when tight tolerances matter. Pressurized air, fog or water soluble coolants remove heat and reduce thermal warping.

Clamping Tricks

Use soft jaws, custom fixtures or vacuum chucks in order to distribute holding pressure. Only apply enough pressure to keep the part stable; because too much pressure compresses or changes the shape of soft polymer.

Annealing Advantages

Anneal stock before and post machining to release internal stresses. This reduces warping, cracking as well as chances of early failure and also assures long term dimensional stability.

RICHCONN offers both pre and post machining annealing to assure stress free & dimensionally consistent PTFE parts.

Storage of Parts

Store PTFE flat in a dry, clean & temperature controlled area out of sunlight. Actually the reason is that proper storage preserves material integrity right up to the moment it hits the machine.

Surface Treatments

Adhesion is not an easy job because PTFE’s surface shows repulsion towards most materials. Therefore a dedicated surface treatment must precede any bonding or coating step. These treatments modify the outer layer for a strong bond.

How to Modify Surfaces

Chemical etching is what most factories use. In this process a sodium naphthalene bath strips away fluorine atoms and leaves a carbon rich layer that accepts adhesive. Plasma treatment is another option; here ionized gas raises the surface energy and primes the part for bonding.

Bonding with Other Materials

After modification you can go for bonding. The strongest bond comes from applying adhesive to an etched part. Pressure sensitive tapes are good for light service but their grip is limited. For higher strength, epoxy or cyanoacrylate systems with a primer gives good results on treated PTFE.

If you need PTFE parts that arrive bond ready RICHCONN can ship parts that are already etched or plasma treated to make assembly easier for you.

Coating Benefits

PTFE is also used as a coating a lot. If sprayed or baked onto other substrates it provides a non stick, low friction as well as a corrosion resistant barrier. Plants, cookware makers and medical device companies specify these coatings for long life.

Where PTFE Machined Parts Get Used

Aerospace Field

Aerospace fuel lines, seals and other electrical insulations mostly use PTFE. This unbelievable material withstands aviation fuels, handles 260 °C temperatures and decreases weight &  maintenance as well. Moreover its low friction lets gaskets and bushings work smoothly even under altitude stress.

Medical

Engineers use PTFE for implants, surgical instruments as well as catheters because the polymer is biocompatible and inert. Its stable chemistry not only protects patients but withstands multiple sterilization cycles as well.

Food Industry

Food processors love PTFE because it is non toxic as well as non stick. It can be machined into conveyor guides, seals and also in pump or mixer parts because it keeps products pure and avoids contamination.

Chemical Plant Uses

Harsh solvents and acids rarely attack PTFE therefore it’s perfect for chemical plant hardware. Pump parts, vessel linings as well as piping made from this polymer resist corrosion, protect product purity and also enhance workplace safety during constant chemical exposure.

Role in Electronics

For electrical insulation PTFE is unbeatable. Designers embed it in connectors, PCBs, high frequency cables as well as capacitor dielectrics. Its extraordinary heat tolerance and low dielectric constant mean smaller, lighter and even more powerful devices – from phones to satellites.

To Sum Up

To machine PTFE (Teflon) you need to account for its softness, low friction and heat‐pressure sensitivity. If you have plenty of coolant, sharp carbide tools and purpose built fixtures you can produce precise high quality PTFE parts for a number of demanding applications. If you need professional PTFE or general CNC machining then contact Richconn; we will review your requirements and advise the best way forward.

Related Questions

The post Machining Teflon/PTFE: Methods and Best Practices appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What is Anodizing?

In anodizing, an electric current forces a metal surface to grow an oxide layer. This protective film not only accepts color finishes but improves corrosion resistance and durability too. In addition aluminum dominates anodizing lines because of its naturally stable oxide layer.

Can Steel Be Anodized or Not?

From a materials standpoint, steel just doesn’t work for anodizing. Because of its iron content, steel reacts with moisture and air. Ultimately this forms rust rather than a protective oxide layer like in case of aluminum. Moreover when submerged in an anodizing bath, steel corrodes and does not form a stable coating.

Alternative Methods

In practice, manufacturers use other surface treatments for steel instead of anodizing. Phosphatization, passivation as well as electropolishing are popular choices. These are safer and also more effective towards steel surfaces; because they not only protect the surface but prevent corrosion as well.

Expert Talks

Steel anodizing is impractical towards industry professionals. Although specialized coatings or electrolytes can anodize steel still their high cost plus low efficiency make these methods rare. Therefore surface treatment experts recommend using established alternatives designed for steel applications.

Other Surface Treatments for Steel

Because anodizing does not work well on steel, engineers rely on several other treatments to boost its corrosion resistance as well as aesthetics.

1. Passivation

In passivation a chemical bath strips free iron from the surface. The treatment thereby produces a passive and thin oxide film that greatly lifts corrosion resistance. This is especially true for stainless grades. For that reason pharmaceutical & food processing plants mostly use this technique.

2. Phosphate Coatings/ Phosphatization

Phosphatization, often called phosphate coating, deposits a crystalline layer. This layer improves both paint bonding as well as corrosion resistance. Automotive, military & appliance manufacturers choose this treatment frequently.

3. Electropolishing for Extraordinary Smoothness

During electropolishing, a controlled electrical current dissolves a microscopic layer. This leaves the steel brighter & smoother. This process also lowers surface roughness & increases corrosion resistance. These are the reasons it shows heavy use in aerospace, medical & semiconductor fields where pristine finishes are critical.

4. Hot Dip Galvanizing

Through galvanization a zinc layer is applied to the steel. This layer acts as a sacrificial shield. This approach excels at defending moisture exposed structures found in outdoor settings. Examples are bridges, fences and marine hardware.

Comparison Table

Benefits of Anodizing

Although steel cannot be anodized, the process has significant advantages when applied to titanium, aluminum or magnesium. Because of these benefits different sectors like electronics, aerospace as well as architecture routinely favor anodizing.

1. Looks

Electrolytic or dyeing techniques can introduce color if anodized. Therefore the process serves branding and decorative goals. Whether applied to sleek phone housings or vivid architectural panels, anodizing delivers both appearance and protection.

2. Extraordinary Corrosion Resistance

Through anodizing, a thick but stable oxide film forms on the exterior. The resulting barrier shields the part from salt, moisture and other aggressive chemicals. Anodized aluminum deployed in marine or outdoor settings, for example, resists corrosion far better as compared to its untreated counterpart.

3. Greenish Output Overall

Anodizing qualifies as a clean and eco-friendly technique. Unlike chromium based finishes it has no toxic chemicals. Moreover it generates very little waste therefore this process aligns well with the priorities of eco conscious sectors.

4. Extra Toughness and Wear

Anodized coating exceeds the base metal in hardness therefore surface wear, scratches as well as friction are greatly reduced. This added toughness suits components exposed to frequent motion or handling such as everyday electronics or aircraft assemblies.

5. Electrical Barrier

Because the oxide film created by anodizing does not conduct electricity therefore it helps isolate sensitive electronic parts. This feature proves particularly important in compact as well as high performance hardware.

Uses of Anodized Metals

You have just seen the benefits of anodizing; now have a look at how different industrial fields use it.

Aerospace

This is a field where weight and performance really matters. Therefore manufacturers incorporate anodized aluminum into aircraft structures, cabin elements as well as critical engine parts. In fact its tough oxide layer cuts weight and at the same time resists wear and corrosion. All this not only extends its service life but boosts its safety as well.

In Electrical Items

Manufacturers of laptops, tablets as well as smartphones frequently encase devices in anodized aluminum. It helps them get a refined look, diverse colors and also adds scratch resistance. Because of these traits gadgets remain light, appealing & comfortable to hold which also improves user satisfaction.

In Architecture

For railings, roofs, facades & window frames, it’s the first choice of architects. The surface stays intact; it neither peels nor chips and also preserves its texture and color for many years. In addition to its resistance towards pollution, its weather as well as UV exposure further qualifies it for long term projects.

Under Water Machinery

Ship fittings, boat hulls and other dock hardware leverage anodizing to counter relentless saltwater exposure. Marine grade anodized metals safeguard safety by curbing corrosion. This also sustains performance in demanding aquatic settings.

Auto Parts

Door handles, vehicle trims and interior accents mostly receive anodized finishes that boost aesthetics and withstand daily wear. Such coatings guard parts against moisture, heat and road chemicals. Ultimately this extends component life and overall reliability.

To Sum Up

Traditional anodizing does not work on steel; but numerous dependable treatments exist instead. In contrast anodizing delivers significant advantages for aluminum in different industrial fields.

For expert guidance regarding surface treatments or if you need any anodizing services thenRichconn is the best option. You can contact us anytime.

Related Questions

The post Can Steel Be Anodized? The Facts Explained appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

What is Magnetism?

In simple terms, magnetism is a force that is created by moving electric charges.  This force makes certain materials (like iron) attract or repel each other. Magnets create a magnetic field which affects how other materials behave around them. Magnetism is a fundamental force of nature and is used in many technologies today.

Is Aluminum Magnetic? The Science behind it

Aluminum is not magnetic in a usual way. Its atomic structure and electron arrangement explain this.

Atomic Structure

Electrons in aluminum are paired within its atoms. Since it has no unpaired electrons, aluminum can’t be magnetic. Ferromagnetic materials like iron have unpaired electrons which form magnetic domains but aluminum doesn’t.

Magnetic Susceptibility

Aluminum is a paramagnetic material. It is weakly attracted to magnetic fields but this effect is very slight and only appears in strong fields. Aluminum can’t be permanently magnetized unlike ferromagnetic materials.

Experimental Evidence

Tests show aluminum has a weak pull towards magnets but loses this effect when the magnetic field is removed. This weak and temporary response proves that aluminum is paramagnetic. Therefore it’s not suitable for uses that need lasting magnetism.

Also see: Types of Aluminum: Alloys, Grades & Applications

How Aluminum Behaves in a Magnetic Field

Aluminum doesn’t behave like strongly magnetic materials when placed near a magnet. Here’s what happens in case of aluminum:

Weak Attraction

Aluminum has a very weak pull towards magnets. It is hard to notice and only appears in very strong magnetic fields. Iron sticks to magnets but aluminum’s attraction is faint.

Induced Magnetism

A strong magnetic field can make aluminum weakly magnetized. It is temporary as once the magnetic field is removed aluminum loses all magnetism and doesn’t retain any magnetic properties.

Practical Considerations

Although aluminum’s magnetic response is weak, it still matters in some applications. Designers in aerospace, electronics as well as medical fields consider how aluminum reacts to magnets. This helps them design parts which resist magnetic interference or are shielded from it. This property is useful for protecting sensitive equipment.

Factors Affecting Aluminum’s Magnetic Properties

Many factors make aluminum’s behavior in a magnetic field more complicated than it seems.

1. Atomic Structure and Electron Configuration

Aluminum has paired electrons in its outer shell. This structure prevents it from becoming magnetized like ferromagnetic materials e.g., iron. Since it has no unpaired electrons, aluminum only shows weak magnetism.

2. External Magnetic Fields

Strength of magnetic field matters. Stronger magnetic fields can produce a more visible effect on aluminum. But the attraction always stays weak and aluminum loses any magnetism once the field is gone.

3. Temperature

Temperature changes affect aluminum’s magnetic response. When temperature increases, atomic movement in aluminum also increases. Therefore its response to magnetic fields becomes even weaker.

4. Crystal Structure and Grain Boundaries

How aluminum’s crystals are arranged affects its reaction to magnetic fields. Grain boundaries inside the metal can affect how magnetic forces interact with aluminum.

5. Purity and Alloying

Aluminum’s purity and the metals added to form alloys also change its magnetic properties. For example adding small amounts of iron to aluminum alloys can make their magnetic behavior slightly stronger.

6. Eddy Currents and Induced Magnetism

When aluminum moves through a magnetic field it produces electrical currents called eddy currents. These currents generate weak magnetic fields that oppose movement. This is useful in technologies like induction heating and electromagnetic braking.

Uses of Aluminum’s Magnetic Properties

Aluminum doesn’t show strong magnetism but its weak response and other features make it useful in many areas.

Electronics

Manufacturers use aluminum in devices like computers and smartphones. Its weak response to magnetic fields helps prevent interference in circuits which keeps performance efficient and stable.

Medical Devices

Aluminum is used in MRI machines and other medical technologies because it barely reacts to magnetic fields. It prevents equipment disruption. Moreover its non-reactive nature also makes it suitable for medical implants.

Aerospace

Aircraft parts often use aluminum for its light weight & strength. Its non-magnetic quality is important to avoid interference with communication and navigation systems.

Everyday Items

Many common products like packaging, foil and car parts contain aluminum. Its non-magnetic property makes it useful wherever minimizing magnetic interference is important.

To Sum Up

Aluminum doesn’t show magnetism in a usual way. It’s paramagnetic, therefore it has weak magnetic effects. Aluminum never gets permanently magnetized. Knowing how aluminum reacts to magnetic fields is important in industries such as aerospace, electronics and medical devices. These industries use aluminum for its non‐magnetism nature and light weight.

If you’re looking for high quality aluminum products or custom solutions for your projects, contact us today.

FAQs

The post Is Aluminum Magnetic? Understanding the Facts appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

To preserve brass products in excellent condition, companies and engineers must employ preventive safety strategies to avoid oxidation.

Also See: Brass Parts Manufacturing: A Complete Guide

What is Composition of Brass and Oxidation of Brass

Composition of Brass

Zinc & copper are the primary constituents of brass alloys. The ratio of these metals affects the brass’s strength, color and resistance to corrosion. A few types of brass also contain trace amounts of lead, tin or iron to enhance its certain properties.

Oxidation Procedure

When exposed to air, moisture and oxygen chemically react with brass. This reaction creates a layer of copper oxide on its surface. Tarnishing appears as a stained or dull appearance. Without proper care, oxidation can turn into corrosion, which ultimately degrades the brass with time.

Also See: 2024 Comparison Guide: Bronze vs. Brass vs. Copper

Factors that Speed‐up Oxidation

• Acidic Environments: Acidic environments or materials can accelerate corrosion.
• Humidity: Oxidation occurs more rapidly when the humidity in the air is high.
• Handling: Exposure to salt and skin oils can accelerate the rate of oxidation.
• Pollution: Industrial emissions & pollution can elevate the speed of tarnishing of brass.

Best Methods to Stop Brass Oxidation

Applying Protective Coatings

• Wax Coatings: A thin layer of wax – like Renaissance Wax – coats the brass and protects it from the surroundings. Antique restorers & conservationists usually depend on this technique.
• Clear Lacquer Coatings: Clear lacquer creates a protective layer on the brass which prevents oxygen and moisture from affecting the surface. A lot of people use this approach for decorative and architectural objects.
• Polymer Coatings: Modern polymer coatings offer strong protection against both corrosion and oxidation. These coatings are usually necessary for brass parts in harsh industrial environments.

Regular Cleaning & Maintenance

• No Harsh Chemicals: Using abrasive or acidic cleaners can strip the brass’s protective layer. This leads to accelerated oxidation which ultimately damages the product. Therefore you should pick brass‐safe, non‐abrasive cleaners that are suitable for metal surfaces. This method extends the lifespan and also maintains the beauty of brass.
• Frequent Cleaning Practices: Frequently cleaning brass items with a microfiber cloth eliminates oil, dust and other residue that can lead to oxidation. Not incorporating harsh rubbing as well as abrasive materials protects against surface damage and retains brass in excellent condition.

Efficient Storage Approaches

• Sealed Storage: Store brass parts in sealed containers for extended storage. This method restricts contact with moisture and air which greatly decreases probability of tarnishing & oxidation. Products that are infrequently handled or used are specially suited for this technique because it helps maintain their looks and quality over time.
• Regulated Humidity: For delaying oxidation, you have to place brass components in an area where humidity is regulated. You can use dehumidifiers or silica gel packs to remove additional moisture from air. By regulating humidity level you can protect brass from unnecessary oxidation and can preserve it as well.

Handling Tips

• Restricting Contact: Touch brass products only when necessary to prevent them from getting oily or dirty. Less handling results in less contamination reaching the surface. These strategies will increase the lifespan and maintain the polished appearance of brass.
• Use of Gloves: Make it your habit to wear cotton gloves when touching brass components. By doing so, you can block salts, skin oils as well as other residues from reaching the brass surface. Moreover, using gloves decreases the risk of tarnishing and oxidation from direct skin contact.

Reviving of Oxidized Brass

• Chemical Treatments: When oxidation is heavy, use a tarnish remover or brass cleaner according to the manufacturer’s instructions. Comply with all instructions to protect the surface from damage. These solutions remove tarnishing and contribute to the restoration of original look of the brass; but be sure to take safety precautions during use.
• Gentle Polishing: If slight oxidation on brass is visible then you should take a soft cloth and apply a mild metal polish. Conduct a test first, by polishing on a tiny, hidden area to ensure there are no adverse effects. These strategies can revive the original luster & shine of brass.

To Sum Up

There are some useful tips & techniques that you can take advantage of to shield brass components from oxidation and increase their lifespan as well. Clean them periodically, apply a protective coating and store them in a regulated environment. By sticking to these tips & techniques you can protect quality and visual appeal of your brass items for multiple years．

If you need a professional manufacturer to customize brass parts for your project, then Richconn is the best choice. You can contact us at any time for customized solutions for your project.

Related Questions

The post How to Prevent Oxidation on Brass Parts? Reasons and Solutions appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.

In this guide we will explain Invar’s special properties, its main benefits, reliable machining methods and practical challenges. With this information, you can decide if Invar is suitable for your next precision task.

What is CNC Machining Invar

Basically CNC Invar machining refers to the process of shaping Invar, a nickel-iron alloy, into precise parts by using computer controlled equipment. This approach produces components with excellent stability and tight tolerances. As a result, for industries that need exact dimensional control, invar is the best option.

Also See: What is CNC Precision Machining

Material Properties of Invar

Composition Table

Main Characteristics

Invar have a very low coefficient of thermal expansion about 1.2 ppm/°C. Its density measures close to 8.1 g/cm³. It melts at roughly 1,427 °C and its tensile strength usually ranges from 450 to 590 MPa. Invar’s magnetic nature also performs an important part in certain specialized uses.

Variants

The most widely used grade is Standard Invar 36 which is valued for its stability. Free-Cut “36” contains selenium which improves speed and ease of machining. For specialized applications, Kovar and super-Invar provide even lower expansion or unique magnetic qualities.

Invar Machining Process Overview

Machining Invar demands techniques tailored to its specific properties. Manufacturers use several established methods to get precise outcomes.

CNC Machining

CNC or computer controlled machining is the primary means of manufacturing Invar parts. Even when fabricating complicated shapes, this technology guarantees high accuracy.

Capabilities

• 3-axis to 5-axis milling: These machines can shape intricate parts and hold tight tolerances sometimes as low as 0.0005. For optics or aerospace components, such precision is very important.
• CNC drilling: In this method, operators use sharp carbide or high-speed steel drills with lubrication to make precise holes. For critical assemblies, such a combination is very important.
• CNC turning: This process creates accurate cylindrical parts. Since Invar does not conduct heat well therefore cooling is necessary during the turning process to prevent surface flaws and heat buildup.
• Swiss machining: This method is preferred for making detailed, small parts. In photonics and scientific fields, it works best.

Also See: Difference Between 3-Axis and 5-Axis CNC Machining

EDM (Sink/Wire)

Electrical Discharge Machining (EDM) handles features which traditional cutting cannot achieve. Through electrical sparks, it removes Invar material, thus providing extreme precision. For complex optics or aerospace parts, this technique is particularly important.

Specialized Techniques

Diamond-turning

Diamond-turning sets the standard for producing optical quality surfaces. On Invar it creates mirror-like finishes which are necessary for advanced optics and IR lenses.

Acid Etching

In acid etching, patterns are formed through chemical reactions. Invar’s resistance to corrosion makes distortion-free, detailed etching possible. In electronics and aerospace tooling, this method is very common.

Finishing and Quality Control

Thermal management becomes essential once machining is complete. To prevent dimensional changes, manufacturers must keep temperatures steady.

Many finishing methods are available for Invar parts which includes

• Grinding: It provides a smooth, flat surface and supports tight tolerance requirements.
• Polishing: It lowers surface roughness which is important for optical components.
• Electropolishing: produces a clean, reflective finish which resists corrosion.
• Bead blasting: provides a uniform, matte look for parts that should not reflect light.

Both finishing and thorough inspections guarantee that each part meets demanding standards for quality and durability.

Working with a manufacturer like Richconn who can deliver precision machining as well as a complete set of in-house finishing services, such as polishing, grinding and bead blasting, can simplify your workflow. This approach helps maintain high quality, consistent output from beginning to end.

Main Benefits of CNC Machining Invar

Durability and Corrosion Resistance

Invar resists wear from frequent use and holds up very well against acids. For chemical processing and harsh environments where other metals might not last, invar works well because it does not corrode easily.

Cost Efficiency

Free-cut Invar grades allow machining speeds to increase by 200 to 250% compared to standard Invar while material properties remain nearly unchanged. As a result manufacturers achieve faster production and lower costs particularly for large orders.

Working with an experienced partner like Richconn can further increase these gains as they adjust machining settings for each job. This ensures you get the right mix of quality, speed and cost-effectiveness.

Dimensional Stability

With a thermal expansion rate of about 1.2 ppm/°C, Invar parts keep their shape despite temperatures change. For telescope mounts, aerospace molds and scientific tools where even small shifts can cause problems, this property is very important.

Weldability and Machinability

Compared to other metals, it is relatively easy to weld and machine Invar. When best practices are followed, CNC milling and turning produce good results. Manufacturers can also cast Invar for complicated shapes. This range of options lets them handle many different requirements.

Main Applications of CNC Machined Invar Parts

Many industries choose Invar for its special qualities. CNC machined Invar parts perform an important part in many demanding fields.

Optics and Photonics

In telescope frames, optical mounts and LiDAR parts, Invar is very common. Its low thermal expansion keeps sensors and lenses in place even when temperatures change. For sharp imaging and precise measurements, this property is very important.

Defense and Aerospace

Defense and aerospace applications depend on Invar’s stability. There it is mostly used for engine valves, satellite optics and molds for composite parts. For these applications such components are needed that stay unchanged during temperature shifts, thus ensuring reliable operation in critical missions.

Cryogenic and LNG Applications

Invar performs well in cold conditions which is why it is used for sensor housings and cryogenic storage tanks. Even at very low temperatures, it stays stable and does not crack.

Scientific Instruments

Invar supports seismic sensors, pendulum clocks and precision gauges. Its stable dimensions keep readings accurate over long periods. For scientific work, this level of accuracy is very important.

Electronics and Manufacturing Tooling

For etching plates, lead frames and injection molding tools, the use of Invar is very common. Its toughness allows for repeated use and its stable dimensions helps with high volume production. Both manufacturing and electronics industries benefit from these features.

Selecting the Right Grade and Machining Service Provider

The success of your project depends on picking both the correct Invar grade and a capable machining partner. Make informed choices by using these steps that guarantee high quality and reliability.

Choose Grade Based on Application

First identify which Invar grade best fits your project’s requirements. For high-volume jobs  free-cut Invar works well because it machines faster than standard options. Select Kovar or super-Invar, if your application needs nonmagnetic properties and lower thermal expansion. Before you decide, review each grade’s machinability, thermal expansion and magnetic characteristics.

Supplier Capabilities

Machining Invar demands specific expertise and not every provider can meet these needs. Find suppliers who hold certifications such as ASTM, AS9100 or NADCAP. Ask if they have handled similar projects and if they provide advanced services like EDM, CNC and finishing. Moreover check whether they can achieve tight tolerances down to 0.0005 inches for your components.

For CNC machining, casting and additive manufacturing, compare the lead times and costs. The right supplier will help you find the best balance between speed, quality and budget for your project.

Challenges and Mitigation Strategies

Machining Invar brings specific challenges which need skilled planning and careful attention even though the material offers significant advantages.

Machining Difficulties

Invar can wear down tools quickly because it has low ductility and it hardens as you work on it. To avoid this, machinists use high speed steel or carbide tools. Moreover they set positive feed rates and choose sharp cutting edges.

At RICHCONN, we rely on fine-tuned feeds and specialized carbide tooling. This approach ensures consistent quality and keeps tool life steady when we machine Invar.

Temperature Control

Small changes in temperature can impact precision because Invar does expand a little with heat.

To manage this, use plenty of coolant and keep the shop at a stable temperature. These steps keep both the tool and part cool. They also help prevent distortion or warping.

Surface Treatment

Machined Invar parts may need stress relief. To achieve this, annealing is done at 315°C for one hour. This process stops unwanted expansion over time and helps parts hold their exact shape.

Cost vs Alternative Materials

Invar’s stability stands out but sometimes graphite tools are a better choice for certain aerospace molds. Before choosing a material, always consider required precision, cost and long-term performance.

Get CNC Invar Machining Services from Richconn

Richconn provides advanced EDM and CNC services for precise Invar machining. Our team delivers expert finishes, achieves tolerances down to 0.0005 and maintains reliable quality for demanding industries around the world. Feel free to request a quote today.

To Sum Up

In short, CNC machining of Invar provides stable dimensions and high precision which makes it suitable for optics, aerospace and scientific uses. By applying proper techniques and by selecting the right grade, manufacturers can produce reliable and complex parts. However it is important to work with an experienced partner.

If you need CNC machining services for Invar or for any other material then Richconn is your best option. You can contact us anytime.

Related Questions

The post CNC Machining Invar: Process, Applications and Benefits appeared first on Richconn | Precision CNC Parts Manufacturing | China CNC Machining Manufacturer.
